SKU: RM01573
Item Condition: New

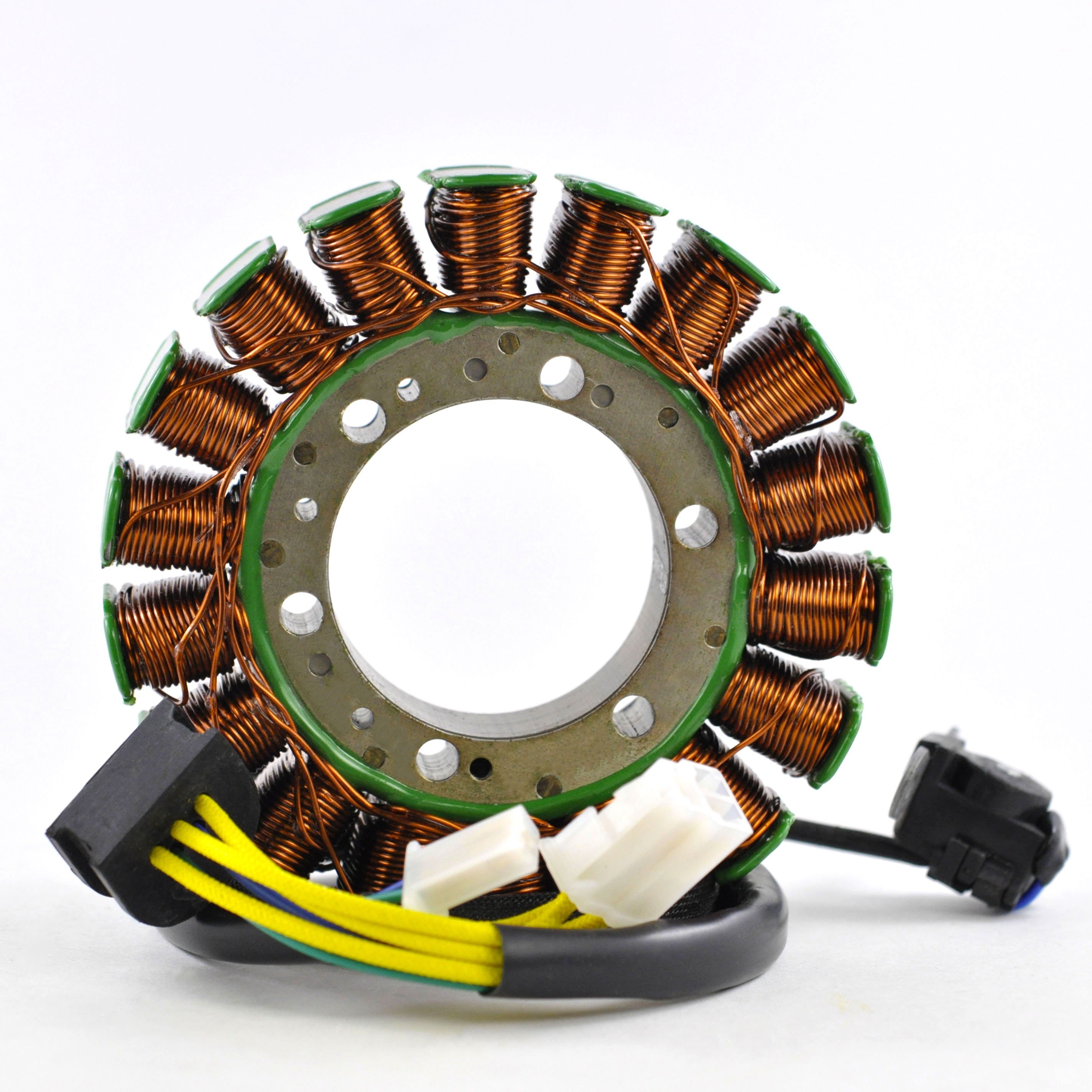

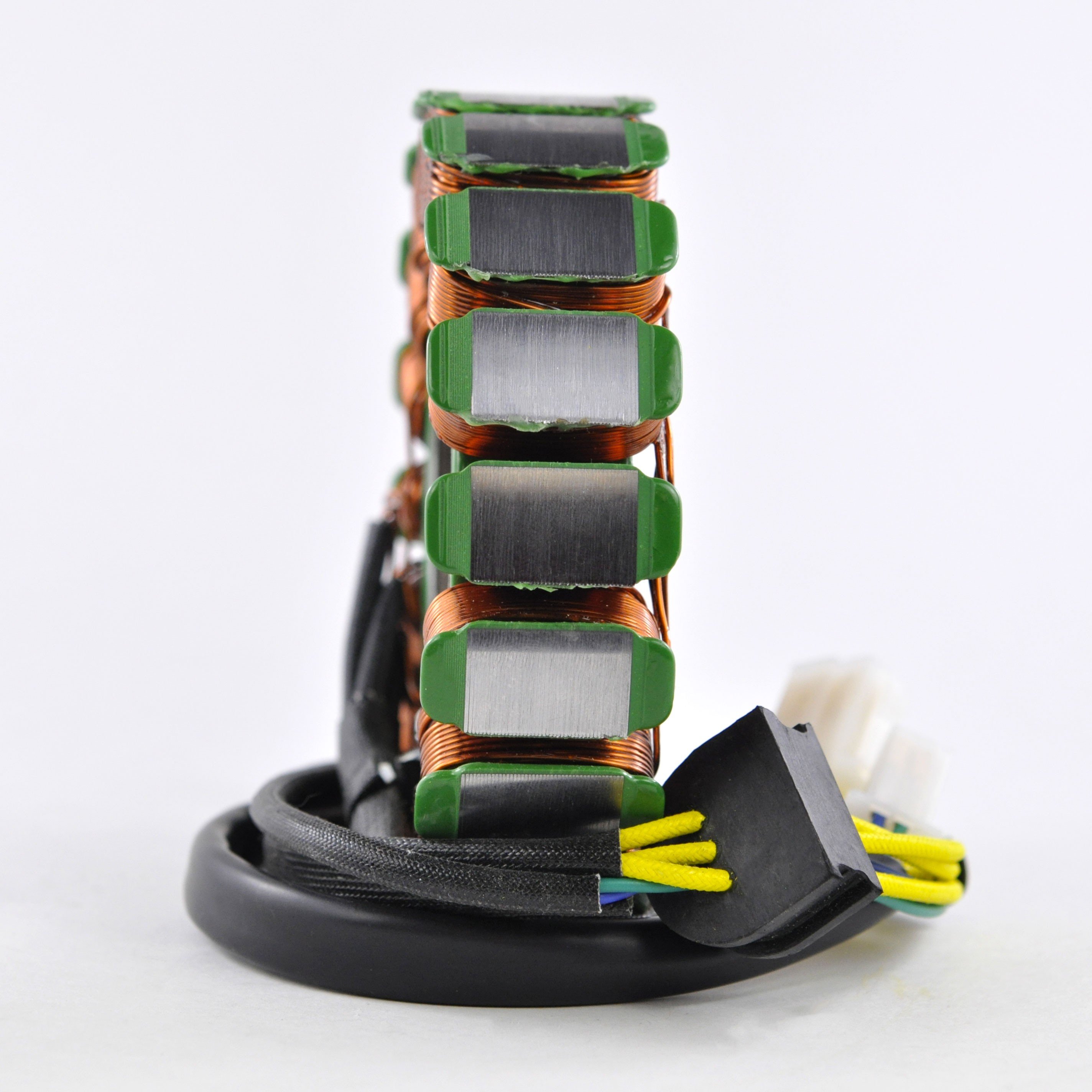

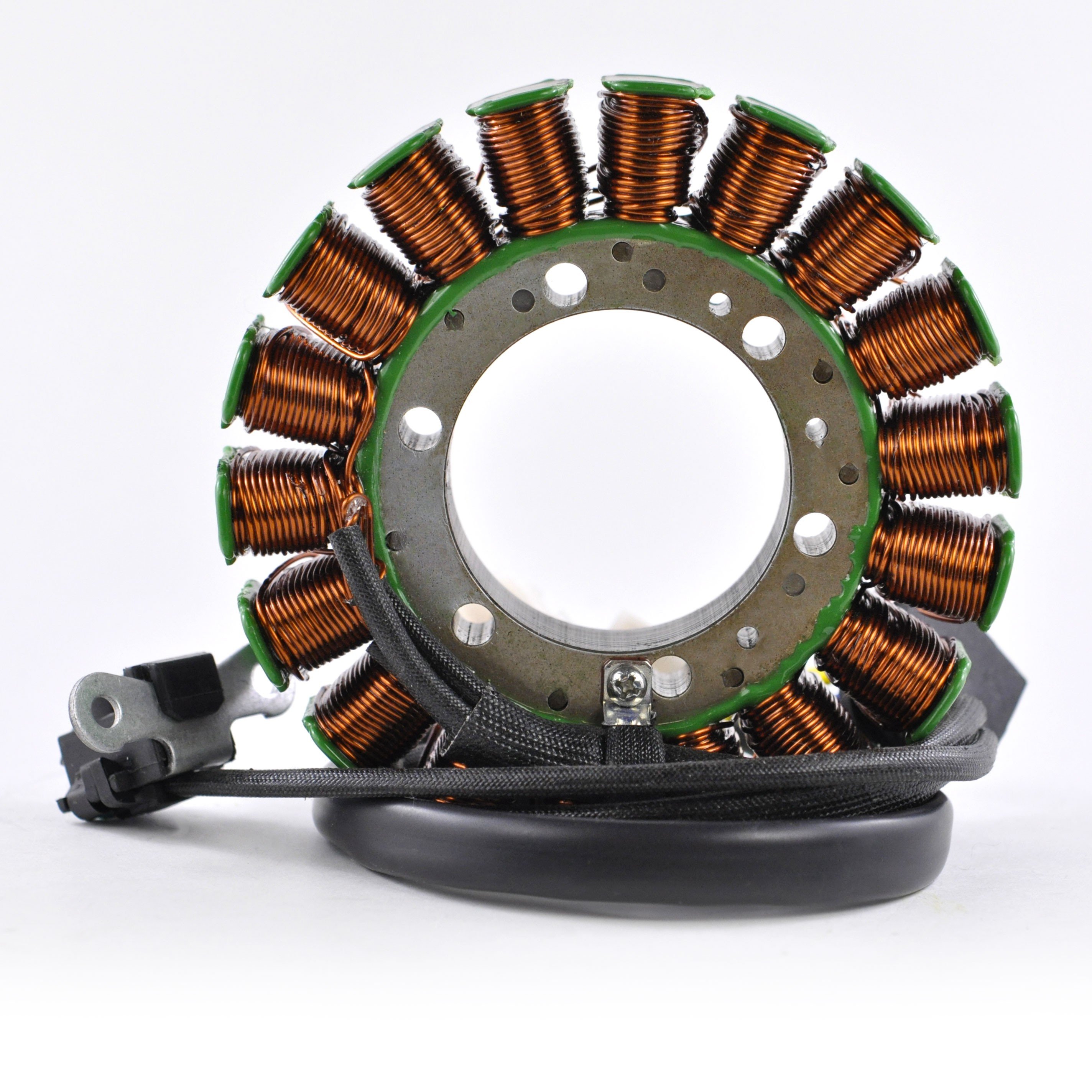

Generator Stator For Suzuki | Boulevard | C50 VL800 | Volusia K5/C50T
Why Choose Us?
For more information on our policies, terms, and new product offerings, visit our website. You can also explore our diagnostic solutions and learn about our office hours and contact details.
Company Details:
Choose Moto-Electrical as your trusted supplier for top-quality electrical parts, competitive pricing, expert support, and an extensive range of reliable products meeting all your needs.
Connect with us on social media for the latest updates and promotions: Facebook, Instagram
Dimensions :
Interior diameter : 54 mmÂ
Exterior diameter : 126 mmÂ
Thickness : 24 mmÂ
Length of wires stator to grommet : 325 mmÂ
Length of wires grommet to plug : 340 mm
Length of pickup coil's wire to grommet : 175 mm
Other specifications :
Number of wires : 5

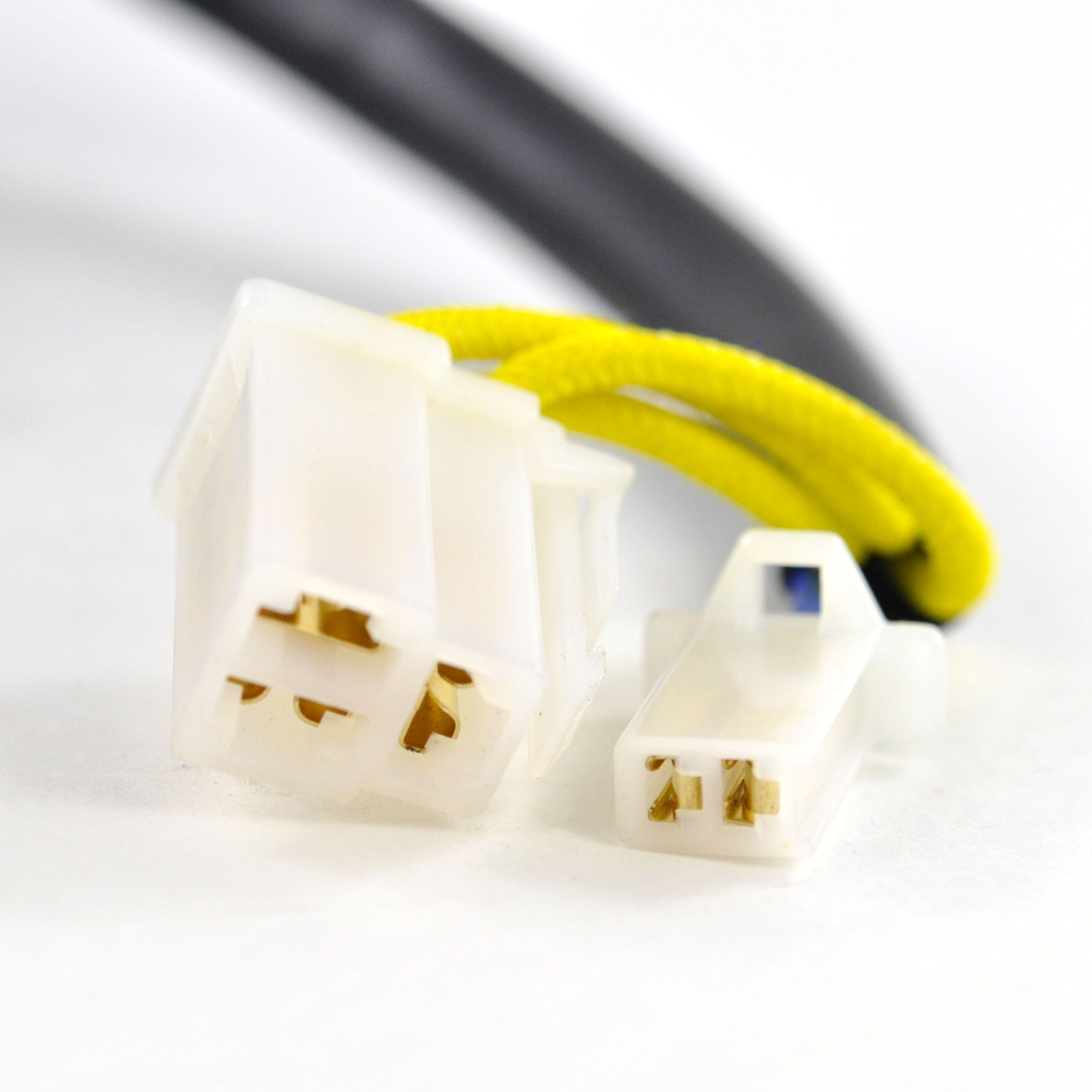

Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Yellow Between each Yellow = 0.6 ohms +-20%
Pickup : Blue To Green = 246 ohms +-20%
