Generator Stator For Yamaha | XVS 950 | VStar/V-Star Tourer 950

Check application & fitment

SKU: RM01586

Item Condition: New

local_shipping
Order by 3pm for same day dispatch*
|
touch_app
Click and collect*
In Stock
£198.30
(£165.25 exc. VAT)
Full Description
Technical Specification

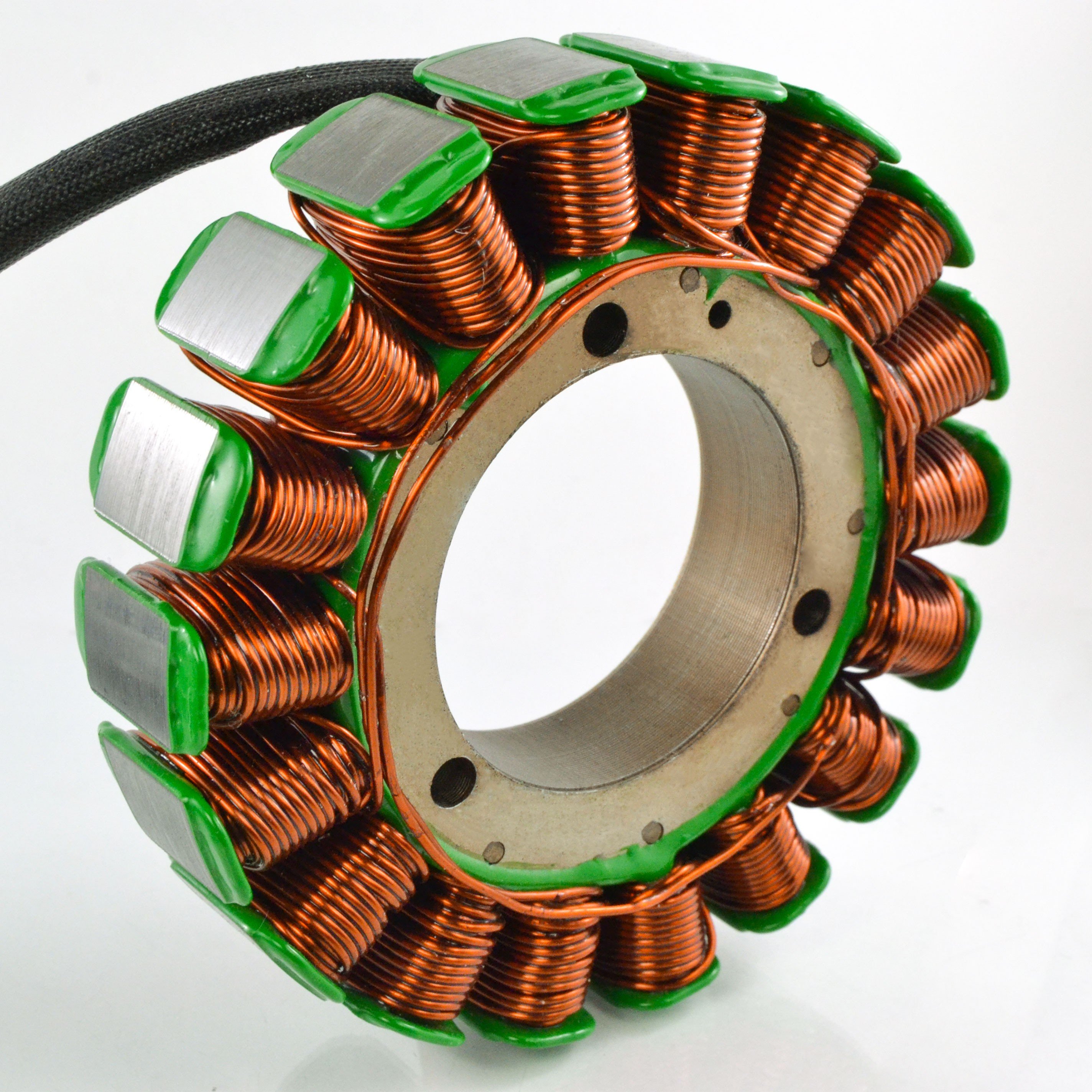

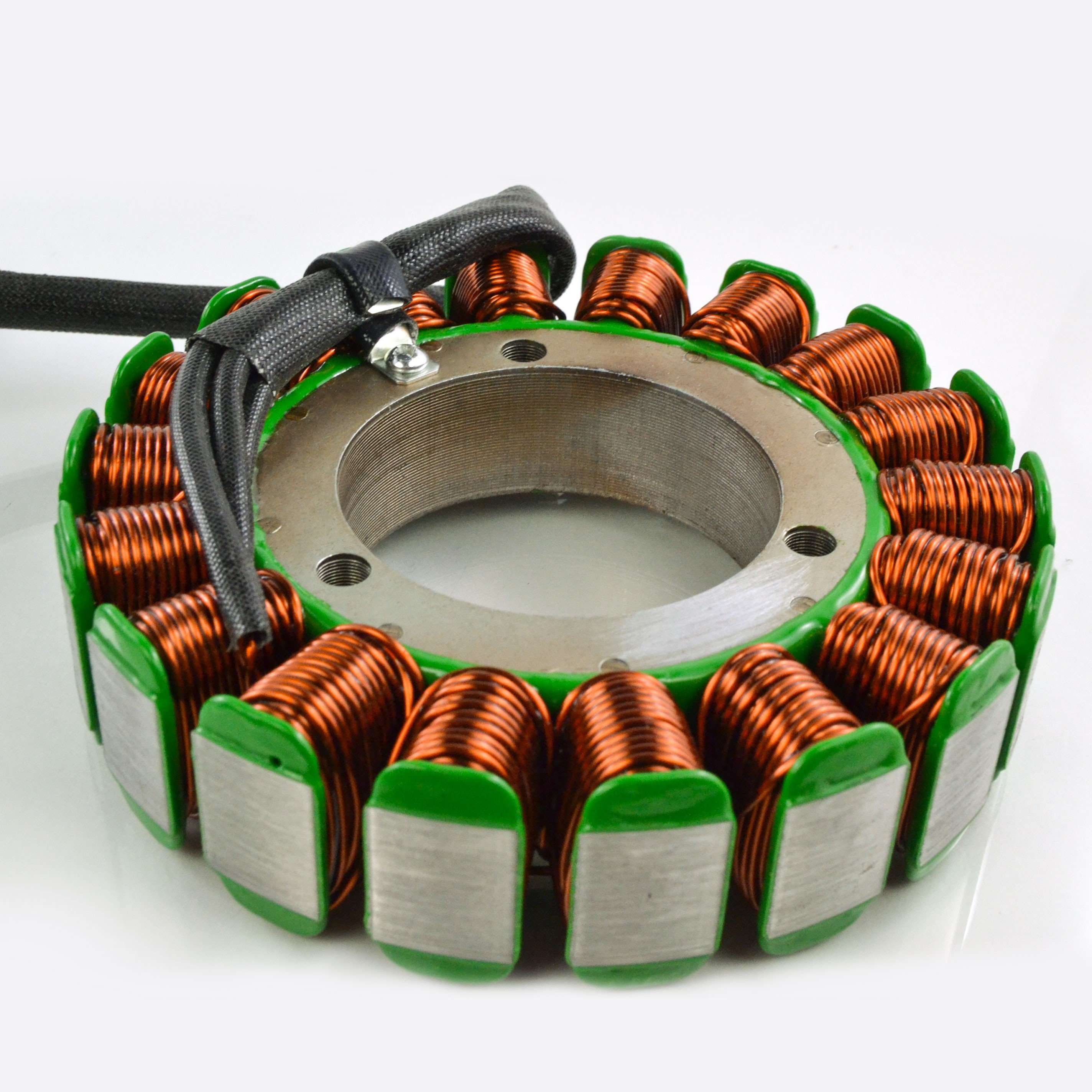

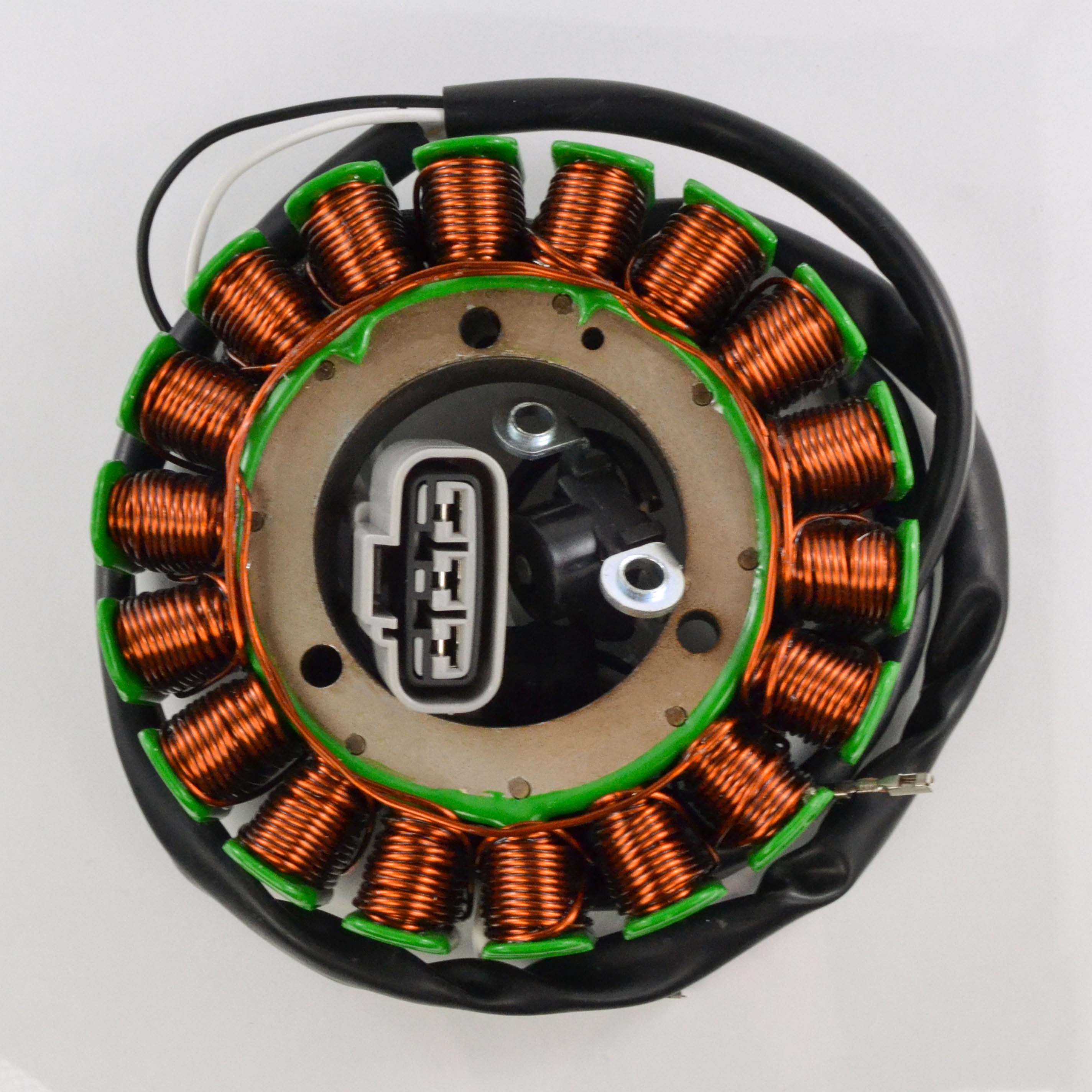

Generator Stator For Yamaha | XVS 950 | VStar/V-Star Tourer 950

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.

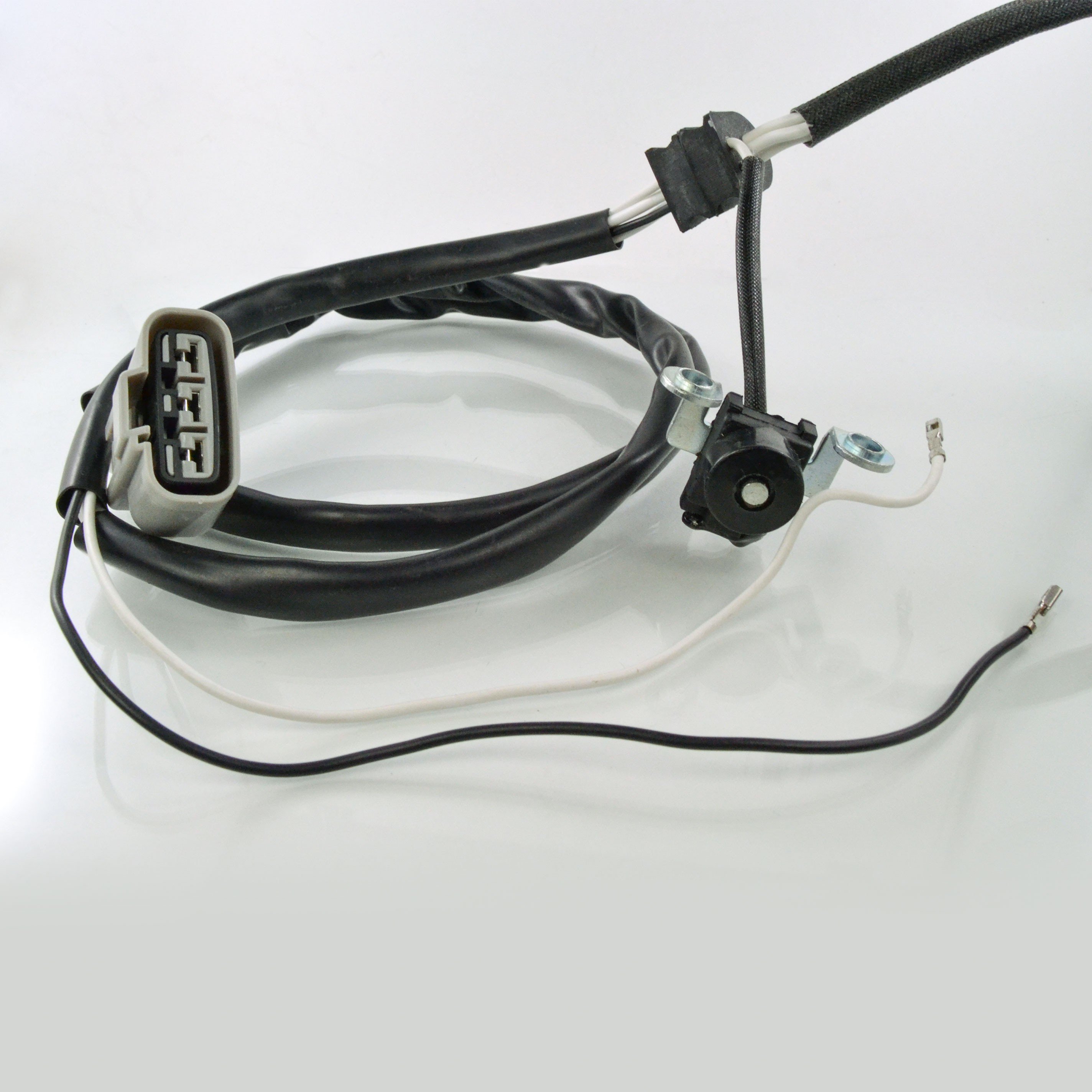

  • Pick up pulsar coil included

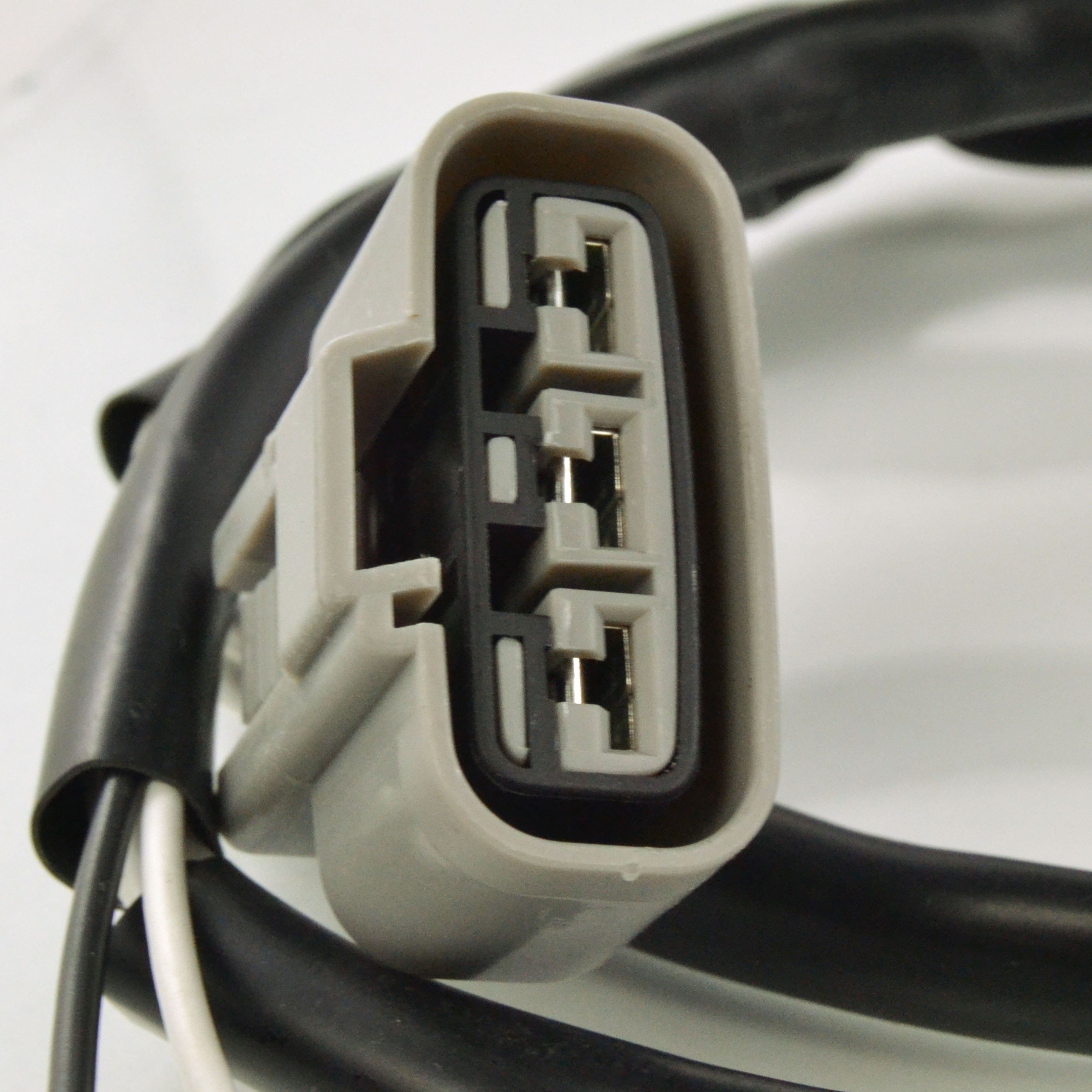

  • Connector included
  • Rubber grommet included

Generator Stator For Yamaha | XVS 950 | VStar/V-Star Tourer 950

Fits Models

  • YAMAHA
    • V Star 950 (2009-2017)
    • V Star 950 Tourer ( 2009-2017)

Replaces OEM

  • YAMAHA
    • 5S7-81410-00-00


Why Choose Us?

  • Expert Fitment Support: Our team is dedicated to assisting you in finding the correct parts and resolving any technical or fitment inquiries. Contact us via phone at 01953 603420 or use our online web chat for immediate assistance.
  • Extensive Product Range: With over 4000 products and continual additions, we are the leading supplier of aftermarket electrical parts and accessories for motorcycles, ATVs, tractors, and more.
  • Convenience and Affordability: Enjoy a convenient ordering process either online or by phone, with reliable and swift delivery services.

For more information on our policies, terms, and new product offerings, visit our website. You can also explore our diagnostic solutions and learn about our office hours and contact details.

Company Details:

Choose Moto-Electrical as your trusted supplier for top-quality electrical parts, competitive pricing, expert support, and an extensive range of reliable products meeting all your needs.

Connect with us on social media for the latest updates and promotions: Facebook, Instagram

Dimensions :
Interior diameter : 58 mm
Exterior diameter : 130 mm
Thickness : 22 mm

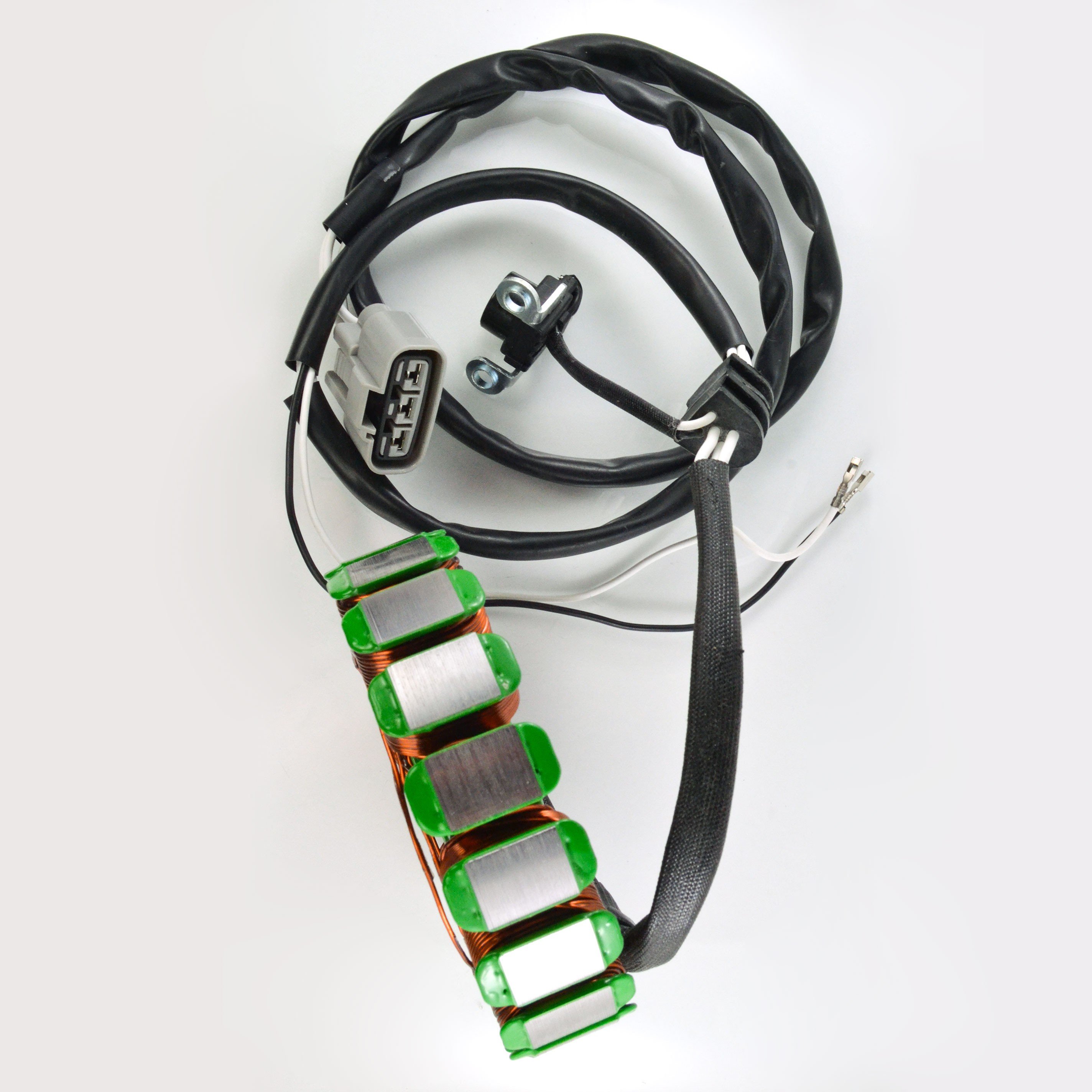

Length of wires stator to grommet 1 : 135 mm
Length of wires Between grommet 1 and 2 : 2 mm
Length of wires grommet 2 to alternator plug : 1050 mm
Length of wires grommet 2 to pick-up coil plug : 295 mm
Length of pickup coil's wire to grommet : 75 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : White to White = 0.5 ohms +-20%
Pickup : White to Grey = 296 ohms +-20%

Part Application/Fitment
Interchanges/Cross References
Model
Code
Year
Manufacturer
Engine
V-Star 950 XVS95
RM01586
2009
YAMAHA
942cc
V-Star 950 XVS95
RM01586
2010
YAMAHA
942cc
V-Star 950 XVS95
RM01586
2011
YAMAHA
942cc
V-Star 950 XVS95
RM01586
2012
YAMAHA
942cc
V-Star 950 XVS95
RM01586
2013
YAMAHA
942cc
V-Star 950 XVS95
RM01586
2014
YAMAHA
942cc
V-Star 950 XVS95
RM01586
2015
YAMAHA
942cc
V-Star 950 XVS95
RM01586
2016
YAMAHA
942cc
V-Star 950 Tourer XVS95C
RM01586
2009
YAMAHA
942cc
V-Star 950 Tourer XVS95C
RM01586
2010
YAMAHA
942cc
V-Star 950 Tourer XVS95C
RM01586
2011
YAMAHA
942cc
V-Star 950 Tourer XVS95C
RM01586
2012
YAMAHA
942cc
V-Star 950 Tourer XVS95C
RM01586
2013
YAMAHA
942cc
V-Star 950 Tourer XVS95C
RM01586
2014
YAMAHA
942cc
V-Star 950 Tourer XVS95C
RM01586
2015
YAMAHA
942cc
V-Star 950 Tourer XVS95C
RM01586
2016
YAMAHA
942cc
V-Star 950 Tourer XVS95C
RM01586
2017
YAMAHA
942cc
Model
Code
5S7-81410-00-00
YAMAHA
