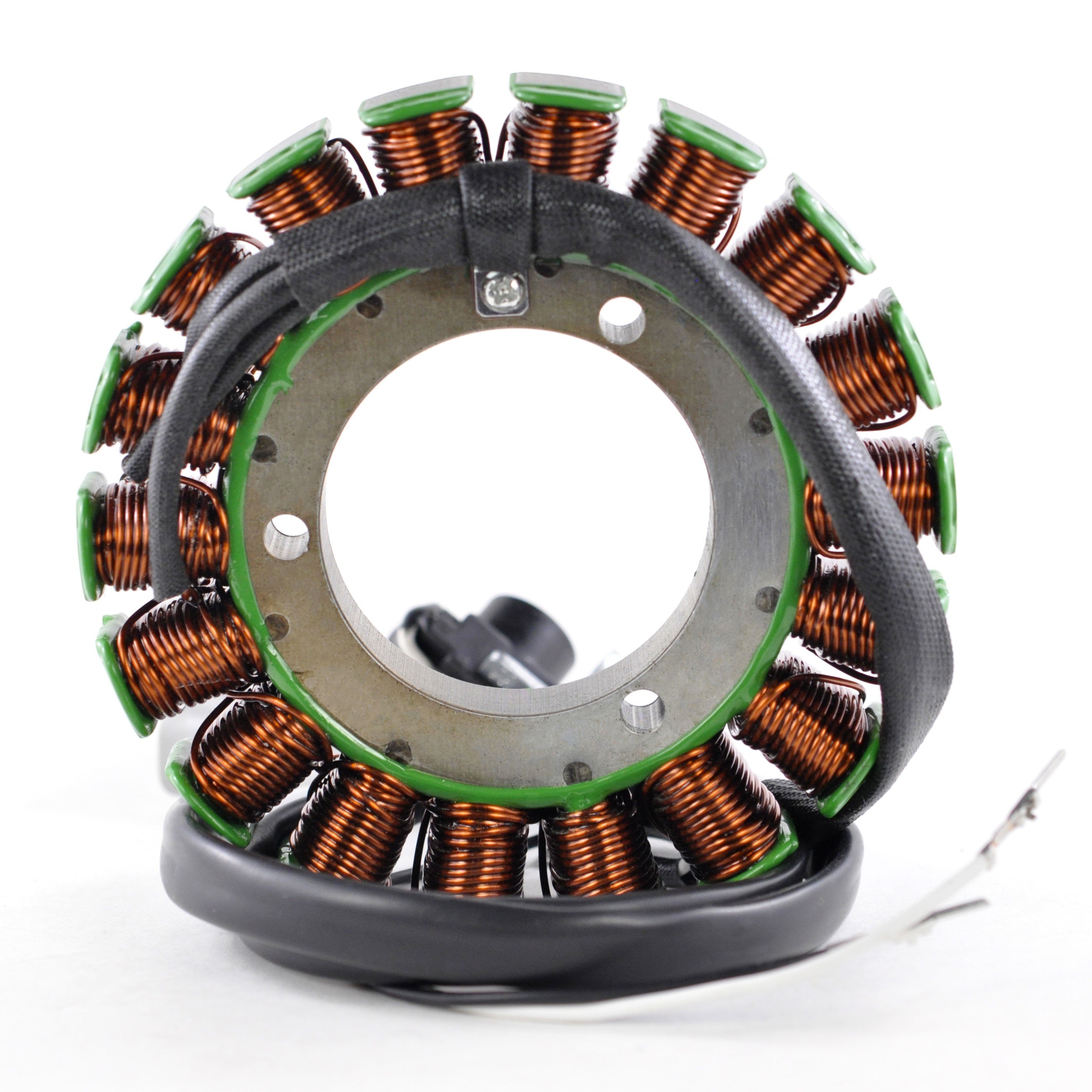

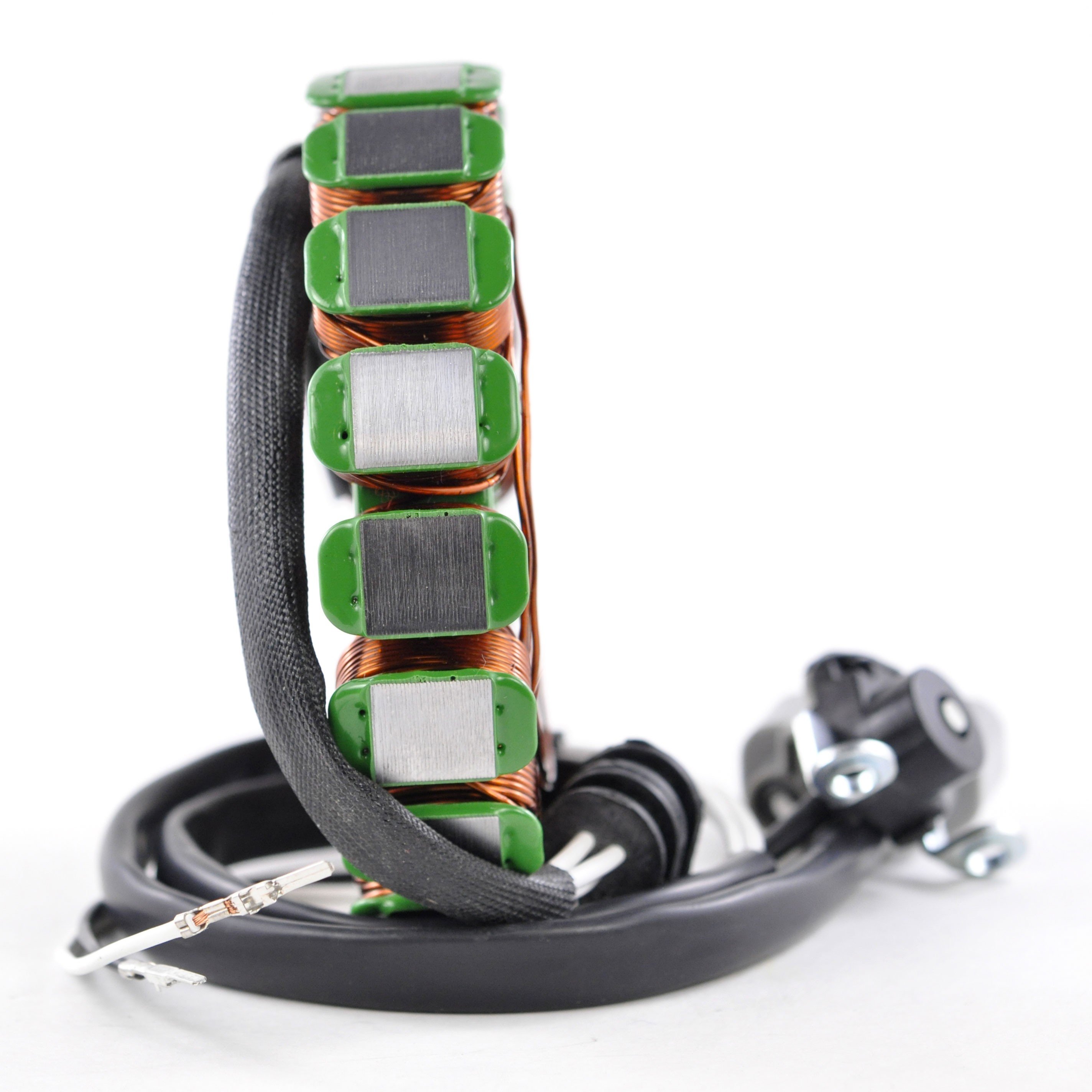

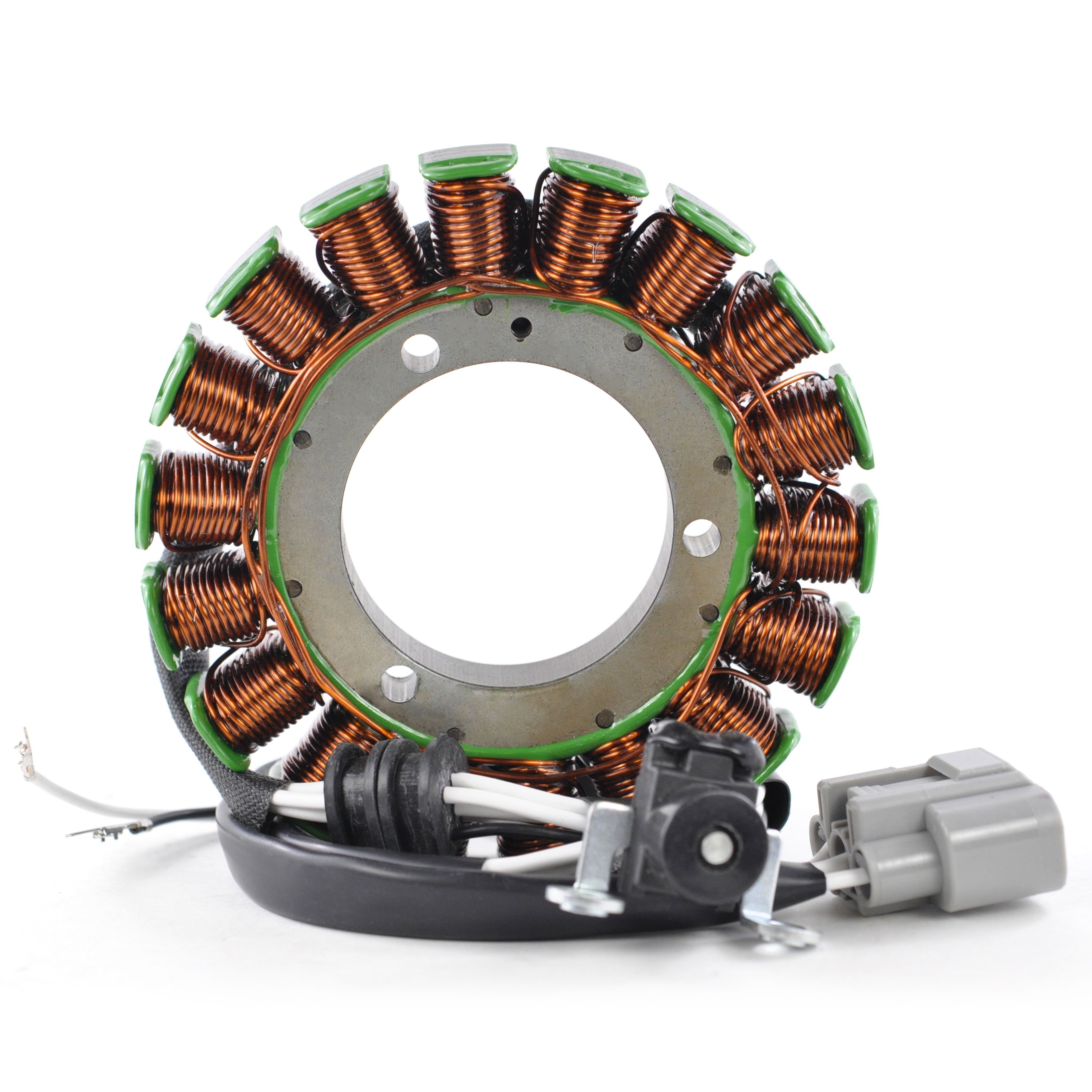

Generator Stator For Yamaha | XVS | Stryker | V Star | Tourer

Check application & fitment

SKU: RM01582

Item Condition: New

local_shipping
Order by 3pm for same day dispatch*
|
touch_app
Click and collect*
In Stock
£198.30
(£165.25 exc. VAT)
Full Description
Technical Specification

Generator Stator For Yamaha | XVS | Stryker | V Star | Tourer

  • Quality Product
  • Made with premium materials

Generator Stator For Yamaha | XVS | Stryker | V Star | Tourer is a quality, durable and reliable part that is easy to use.

Fits Models

  • YAMAHA
    • Stryker 1300 (2011-2017)
    • V Star Deluxe 1300 (2014-2017)
    • V Star Tourer 1300 (2010-2017)
    • V Star (2011-2015)

Quality Product

  • YAMAHA
    • 3D8-81410-10-00
    • 3D8-81410-20-00


Why Choose Us?

  • Expert Fitment Support: Our team is dedicated to assisting you in finding the correct parts and resolving any technical or fitment inquiries. Contact us via phone at 01953 603420 or use our online web chat for immediate assistance.
  • Extensive Product Range: With over 4000 products and continual additions, we are the leading supplier of aftermarket electrical parts and accessories for motorcycles, ATVs, tractors, and more.
  • Convenience and Affordability: Enjoy a convenient ordering process either online or by phone, with reliable and swift delivery services.

For more information on our policies, terms, and new product offerings, visit our website. You can also explore our diagnostic solutions and learn about our office hours and contact details.

Company Details:

Choose Moto-Electrical as your trusted supplier for top-quality electrical parts, competitive pricing, expert support, and an extensive range of reliable products meeting all your needs.

Connect with us on social media for the latest updates and promotions: Facebook, Instagram

Dimensions :
Interior diameter : 58 mm
Exterior diameter : 130 mm
Thickness : 18 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet 1 to grommet 2 : 2 mm
Length of wires grommet 2 to alternator plug : 575 mm
Length of wires grommet 2 to pick up plug : 365 mm
Length of pickup coil's wire to grommet : 75 mm

Other specifications :
Number of wires : 5

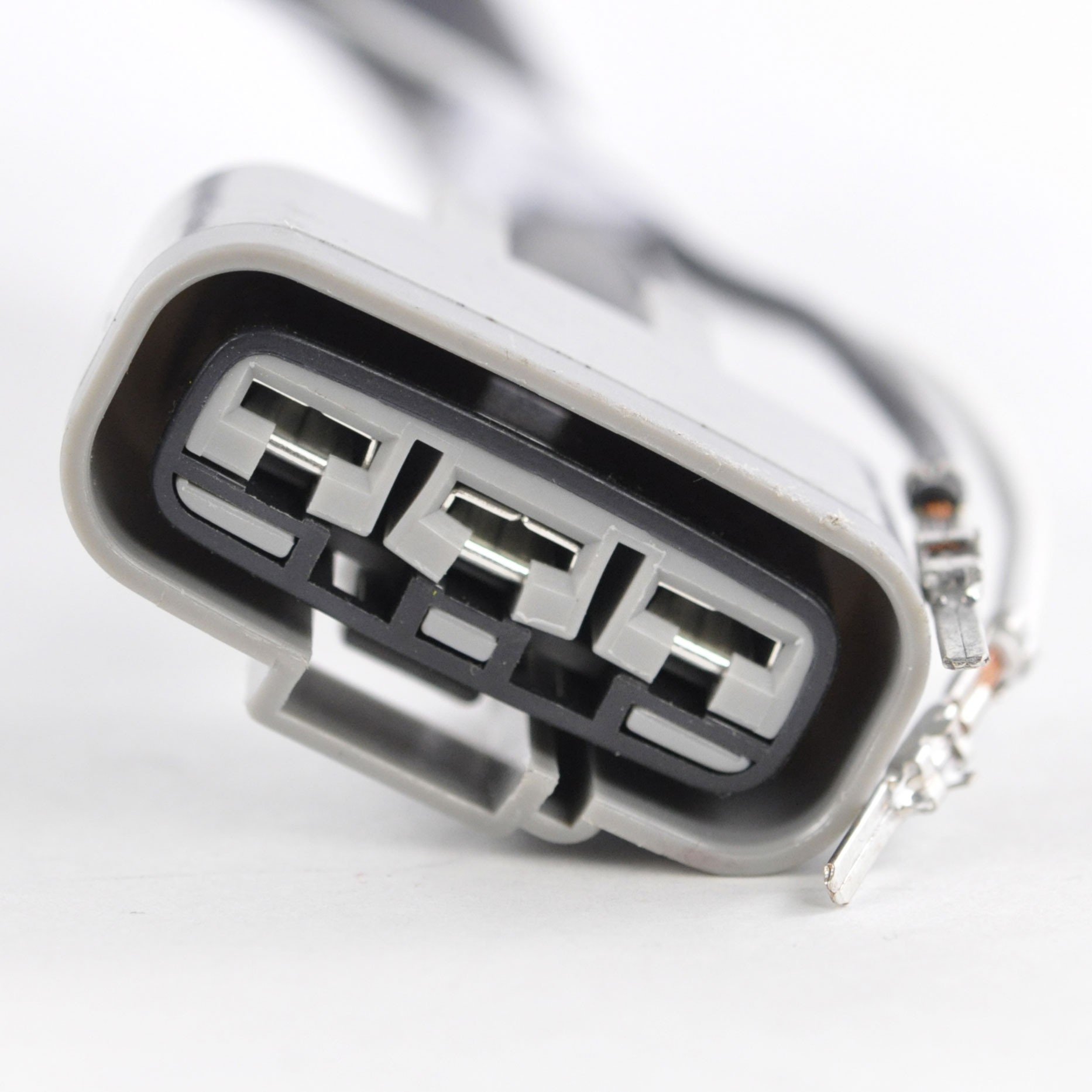

Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : White between White = 0.4 ohms +/-20%
Pickup : Black to Grey = 287 ohms +/-20%

Interchanges/Cross References
Model
Code
3D8-81410-10-00
YAMAHA
3D8-81410-20-00
YAMAHA
3D8-81410-10-00
Yamaha
3D8-81410-20-00
Yamaha
