Generator Stator Honda XR 650 L 1993-2013

Check application & fitment

SKU: RM01021

Item Condition: New

local_shipping
Order by 3pm for same day dispatch*
|
touch_app
Click and collect*
In Stock
£172.80
(£144.00 exc. VAT)
Full Description
Technical Specification

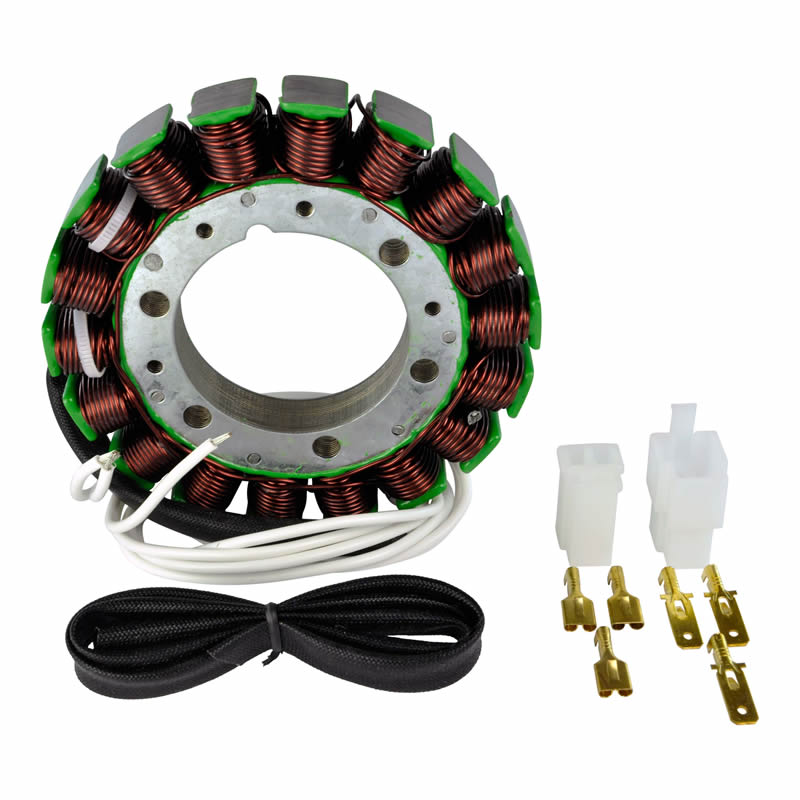

Generator Stator Honda XR 650 L 1993-2013

  • You must re-install your original grommet and the new connector (see picture).
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included

Generator Stator Honda XR 650 L 1993-2013 is a quality, durable and reliable part that is easy to use.


Why Choose Us?

  • Expert Fitment Support: Our team is dedicated to assisting you in finding the correct parts and resolving any technical or fitment inquiries. Contact us via phone at 01953 603420 or use our online web chat for immediate assistance.
  • Extensive Product Range: With over 4000 products and continual additions, we are the leading supplier of aftermarket electrical parts and accessories for motorcycles, ATVs, tractors, and more.
  • Convenience and Affordability: Enjoy a convenient ordering process either online or by phone, with reliable and swift delivery services.

For more information on our policies, terms, and new product offerings, visit our website. You can also explore our diagnostic solutions and learn about our office hours and contact details.

Company Details:

Choose Moto-Electrical as your trusted supplier for top-quality electrical parts, competitive pricing, expert support, and an extensive range of reliable products meeting all your needs.

Connect with us on social media for the latest updates and promotions: Facebook, Instagram

Number of wires : 3 Number of terminals : 3 Alternator : White between each White = 0.4 ohms+/-20% Alternator : White to Ground = O.L. ON DISPLAY Before installing your new stator
  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
Part Application/Fitment
Interchanges/Cross References
Model
Code
Year
Manufacturer
Engine
LS650 Savage
RM01021
2001
SUZUKI
652cc
LS650 Savage
RM01021
2002
SUZUKI
652cc
LS650 Savage
RM01021
2003
SUZUKI
652cc
LS650 Savage
RM01021
2004
SUZUKI
652cc
LS650 Savage
RM01021
1986
SUZUKI
652cc
LS650 Savage
RM01021
1987
SUZUKI
652cc
LS650 Savage
RM01021
1988
SUZUKI
652cc
LS650 Savage
RM01021
1995
SUZUKI
652cc
LS650 Savage
RM01021
1996
SUZUKI
652cc
LS650 Savage
RM01021
1997
SUZUKI
652cc
LS650 Savage
RM01021
1998
SUZUKI
652cc
LS650 Savage
RM01021
1999
SUZUKI
652cc
LS650 Savage
RM01021
2000
SUZUKI
652cc
LS650 Boulevard S40
RM01021
2005
SUZUKI
652cc
LS650 Boulevard S40
RM01021
2006
SUZUKI
652cc
LS650 Boulevard S40
RM01021
2007
SUZUKI
652cc
LS650 Boulevard S40
RM01021
2008
SUZUKI
652cc
LS650 Boulevard S40
RM01021
2009
SUZUKI
652cc
LS650 Boulevard S40
RM01021
2010
SUZUKI
652cc
LS650 Boulevard S40
RM01021
2011
SUZUKI
652cc
LS650 Boulevard S40
RM01021
2012
SUZUKI
652cc
LS650
RM01021
2013
SUZUKI
652cc
LS650
RM01021
2014
SUZUKI
652cc
LS650
RM01021
2015
SUZUKI
652cc
VN1500 Vulcan 1500
RM01021
1996
KAWASAKI
1470cc
VN1500 Vulcan 1500
RM01021
1997
KAWASAKI
1470cc
VN1500 Vulcan 1500
RM01021
1998
KAWASAKI
1470cc
VN1500 Vulcan 1500
RM01021
1999
KAWASAKI
1470cc
VN1500 Vulcan 1500 Classic
RM01021
1996
KAWASAKI
1470cc
VN1500 Vulcan 1500 Classic
RM01021
1997
KAWASAKI
1470cc
VN1500 Vulcan 1500 Classic
RM01021
1998
KAWASAKI
1470cc
VN1500 Vulcan 1500L
RM01021
1996
KAWASAKI
1470cc
VN1500 Vulcan 1500L
RM01021
1997
KAWASAKI
1470cc
VN1500 Vulcan 88
RM01021
1987
KAWASAKI
1470cc
VN1500 Vulcan 88
RM01021
1988
KAWASAKI
1470cc
VN1500 Vulcan 88
RM01021
1989
KAWASAKI
1470cc
VN1500 Vulcan 88
RM01021
1990
KAWASAKI
1470cc
VN1500 Vulcan 88
RM01021
1991
KAWASAKI
1470cc
VN1500 Vulcan 88
RM01021
1992
KAWASAKI
1470cc
VN1500 Vulcan 88
RM01021
1993
KAWASAKI
1470cc
VN1500 Vulcan 88
RM01021
1994
KAWASAKI
1470cc
VN1500 Vulcan 88
RM01021
1995
KAWASAKI
1470cc
VN1500 Vulcan 88SE
RM01021
1987
KAWASAKI
1470cc
VN1500 Vulcan 88SE
RM01021
1988
KAWASAKI
1470cc
VN1500 Vulcan 88SE
RM01021
1989
KAWASAKI
1470cc
VN1500 Vulcan 88SE
RM01021
1990
KAWASAKI
1470cc
ZX-9R Ninja ZX900
RM01021
1998
KAWASAKI
899cc
ZX-9R Ninja ZX900
RM01021
1999
KAWASAKI
899cc
ZX-9R Ninja ZX900
RM01021
2000
KAWASAKI
899cc
ZX-9R Ninja ZX900
RM01021
2001
KAWASAKI
899cc
ZX-9R Ninja ZX900
RM01021
2002
KAWASAKI
899cc
ZX-9R Ninja ZX900
RM01021
2003
KAWASAKI
899cc
XR650L
RM01021
1993
HONDA
644cc
XR650L
RM01021
1994
HONDA
644cc
XR650L
RM01021
1995
HONDA
644cc
XR650L
RM01021
1996
HONDA
644cc
XR650L
RM01021
1997
HONDA
644cc
XR650L
RM01021
1998
HONDA
644cc
XR650L
RM01021
1999
HONDA
644cc
XR650L
RM01021
2000
HONDA
644cc
XR650L
RM01021
2001
HONDA
644cc
XR650L
RM01021
2002
HONDA
644cc
XR650L
RM01021
2003
HONDA
644cc
XR650L
RM01021
2004
HONDA
644cc
XR650L
RM01021
2005
HONDA
644cc
XR650L
RM01021
2006
HONDA
644cc
XR650L
RM01021
2007
HONDA
644cc
XR650L
RM01021
2008
HONDA
644cc
XR650L
RM01021
2009
HONDA
644cc
XR650L
RM01021
2012
HONDA
644cc
XR650L
RM01021
2013
HONDA
644cc
XR650L
RM01021
2014
HONDA
644cc
XR650L
RM01021
2015
HONDA
644cc
XR650L
RM01021
2016
HONDA
644cc
Model
Code
31120-MW2-781
Honda
32101-24B00
Suzuki
32101-24B01
Suzuki
32101-24B02
Suzuki
32101-38B00
Suzuki
32101-38B01
Suzuki
32101-38B02
Suzuki
21003-1164
Kawasaki
21003-1301
Kawasaki
21003-1320
Kawasaki
21003-1330
Kawasaki
21003-1353
Kawasaki
21003-1377
Kawasaki
21003-1397
Kawasaki
31120-MK4-602
Honda
31120-MN9-025
Honda
31120-MW2-781
Honda
32101-24B00
Suzuki
32101-24B01
Suzuki
32101-24B02
Suzuki
AHA4042
ARROWHEAD (OLD)
31120-MN9-005
Honda
31120-MN9-015
Honda
21003-1385
Kawasaki
