High Output Generator For Stator Suzuki 1996-2013

Check application & fitment

SKU: RM01047

Item Condition: New

local_shipping
Order by 3pm for same day dispatch*
|
touch_app
Click and collect*
In Stock
£193.20
(£161.00 exc. VAT)
Full Description
Technical Specification

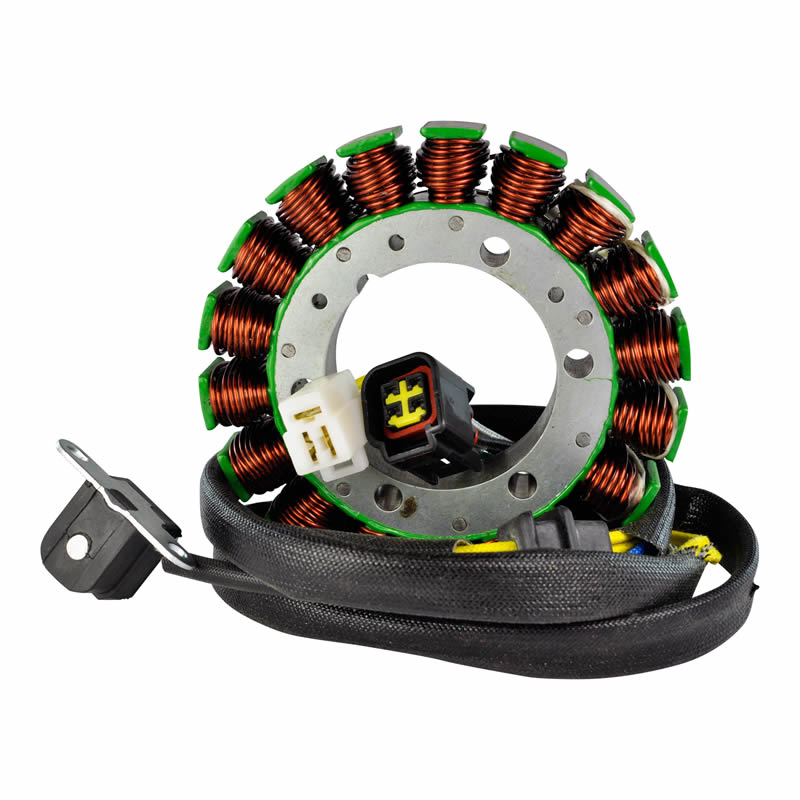

High Output Generator For Stator Suzuki 1996-2013

  • Direct replacement to your original unit
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.

High Output Generator For Stator Suzuki 1996-2013 is a quality, durable and reliable part that is easy to use.


Why Choose Us?

  • Expert Fitment Support: Our team is dedicated to assisting you in finding the correct parts and resolving any technical or fitment inquiries. Contact us via phone at 01953 603420 or use our online web chat for immediate assistance.
  • Extensive Product Range: With over 4000 products and continual additions, we are the leading supplier of aftermarket electrical parts and accessories for motorcycles, ATVs, tractors, and more.
  • Convenience and Affordability: Enjoy a convenient ordering process either online or by phone, with reliable and swift delivery services.

For more information on our policies, terms, and new product offerings, visit our website. You can also explore our diagnostic solutions and learn about our office hours and contact details.

Company Details:

Choose Moto-Electrical as your trusted supplier for top-quality electrical parts, competitive pricing, expert support, and an extensive range of reliable products meeting all your needs.

Connect with us on social media for the latest updates and promotions: Facebook, Instagram

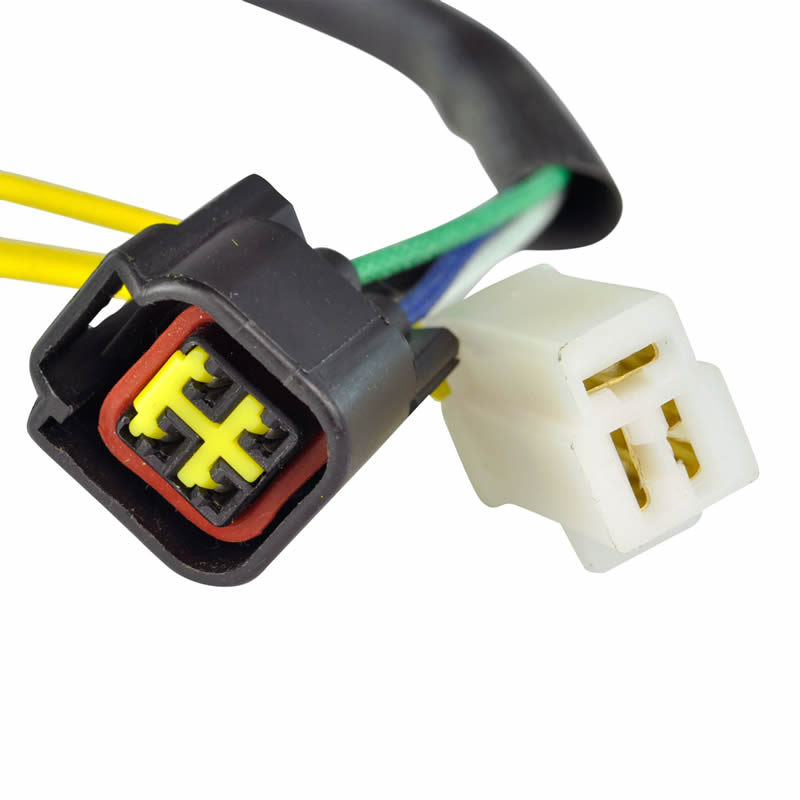

Number of wires : 4 Number of terminals : 4 Alternator : Yellow Between each Yellow 0.7 ohms+/- 20% Alternator : Yellow to Ground O.L on DISPLAY Pickup : Blue to Green 200 ohms+/-20% Position Sensor : Black to White 0.4 ohms+/-20%   Salvage the OEM stator connector and 4 inches of wiring from the OEM harness.You will need to use a small soldering iron, solder the wires of the OEM wiring harness to the wires on your new stator, by following their color codes. Before installing your new stator
  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier.
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors
This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.
Interchanges/Cross References
Model
Code
32101-32E00
Suzuki
32101-32E00
Suzuki
32101-32E01
Suzuki
