Stator Unit Kawasaki KVF650/750 21003-0003 Suzuki LTV700

SKU: RM01045

Item Condition: New

local_shipping
Order by 3pm for same day dispatch*
|
touch_app
Click and collect*
In Stock
£147.40
(£147.40 exc. VAT)
Share:
Full Description
Technical Specification

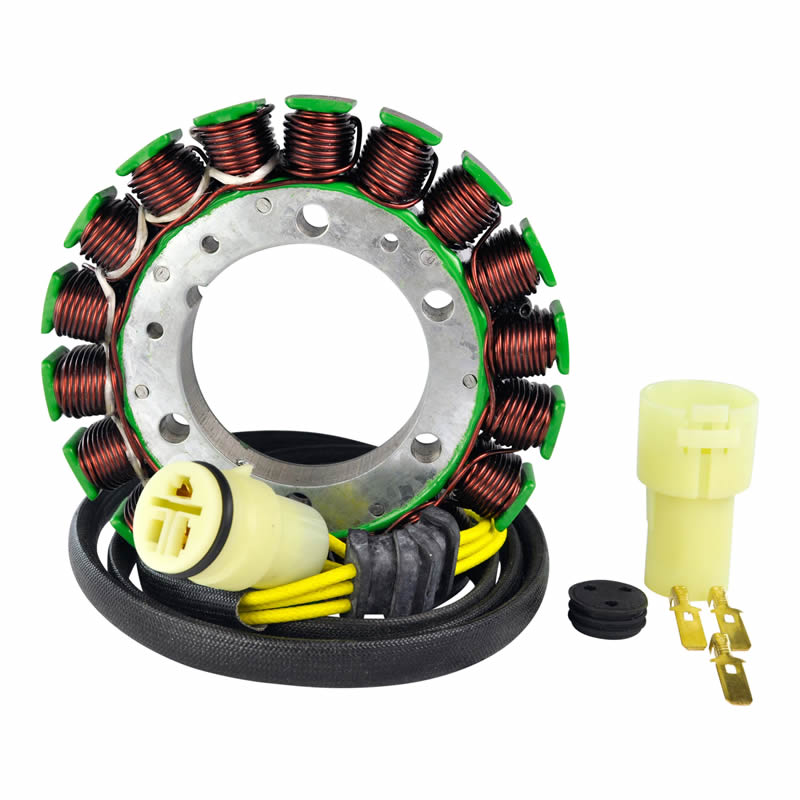

Stator Unit for Kawasaki KVF650/750 & Suzuki LTV700

Replaces OEM #: 21003-0003, 21003-0012, 21003-0092, 21003-1359, K2100-31359

Key Features

✔ Direct Replacement
High-output stator designed as a direct replacement for the original unit. Engineered for perfect fit and reliable performance on listed Kawasaki and Suzuki models.

✔ Pick-Up Pulsar Coil Included
Comes with a built-in pick-up pulsar coil to ensure accurate ignition timing and strong electrical signal generation.

✔ Plug-and-Play Connectors
Includes all necessary connectors for a hassle-free installation. Both primary and opposite connectors match OEM layouts.

✔ Rubber Grommet Included
A durable rubber grommet provides added insulation and protection against heat, moisture, and debris.

✔ Premium Build Quality

  • Highest-grade lamination materials for stable electrical output

  • High-quality copper windings for excellent conductivity and heat resistance

  • Heat-resistant design rated up to 200°C, ideal for demanding ATV and motorcycle conditions

Installation Notes

  • Refer to your vehicle’s service manual for step-by-step installation instructions.

  • Confirm compatibility with your exact model and year before installation.

  • Ensure the rubber grommet is properly installed for full protection.

  • Follow the manufacturer’s torque specs and wiring guidelines.

Fits the Following Models

Kawasaki

  • KFX 700 — 2004–2009

  • KVF 650 Brute Force — 2005–2013

  • KVF 650 Brute Force HDi — 2006–2010

  • KVF 650 Brute Force i — 2006–2013

  • KVF 650 Prairie — 2002–2003

  • KVF 700 Prairie — 2004–2006

  • KVF 750 Brute Force — 2005–2007

Suzuki

  • LTV 700 F Twin Peaks — 2004–2005

Why Choose Us?

  • Expert Fitment Support: Our team is dedicated to assisting you in finding the correct parts and resolving any technical or fitment inquiries. Contact us via phone at 01953 603420 or use our online web chat for immediate assistance.
  • Extensive Product Range: With over 4000 products and continual additions, we are the leading supplier of aftermarket electrical parts and accessories for motorcycles, ATVs, tractors, and more.
  • Convenience and Affordability: Enjoy a convenient ordering process either online or by phone, with reliable and swift delivery services.

For more information on our policies, terms, and new product offerings, visit our website. You can also explore our diagnostic solutions and learn about our office hours and contact details.

Company Details:

Choose Moto-Electrical as your trusted supplier for top-quality electrical parts, competitive pricing, expert support, and an extensive range of reliable products meeting all your needs.

Connect with us on social media for the latest updates and promotions: Facebook, Instagram

Number of wires : 3 Number of terminals : 3 Alternator : Yellow Between each Yellow = 0.4 ohms+/- 20% Alternator : Yellow to Ground = O.L. ON DISPLAY   Before installing your new stator:
  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code then you’re original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.
