Stator Arctic Cat 1985-2005 Bearcat, Cheetah, Cougar El Tigre EXT Jag Lynx etc.

Check application & fitment

SKU: RM01300

Item Condition: New

local_shipping
Order by 3pm for same day dispatch*
|
touch_app
Click and collect*
In Stock
£183.00
(£152.50 exc. VAT)
Full Description
Technical Specification

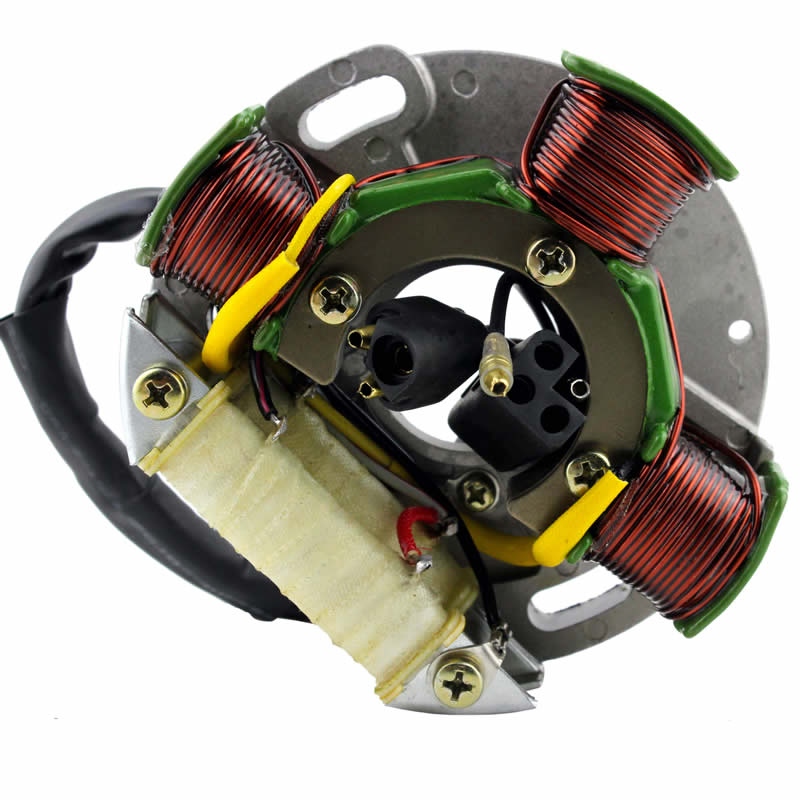

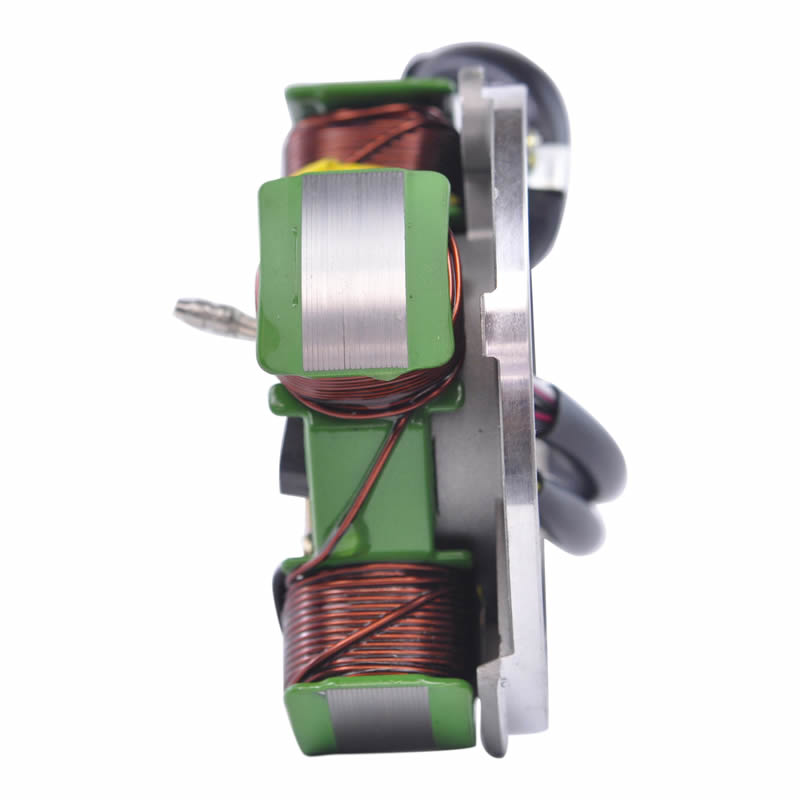

Stator Arctic Cat 1985-2005 Bearcat, Cheetah, Cougar El Tigre EXT Jag Lynx etc.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Pick up pulsar coil included

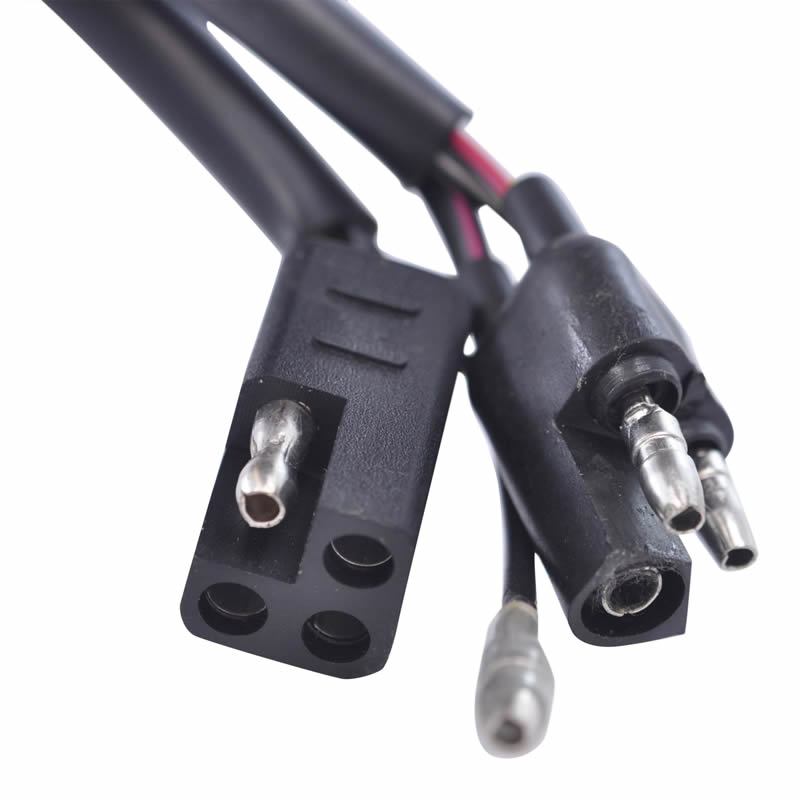

  • Connector included
  • Rubber grommet included

Stator Arctic Cat 1985-2005 Bearcat, Cheetah is a quality, durable and reliable part that is easy to use.


Why Choose Us?

  • Expert Fitment Support: Our team is dedicated to assisting you in finding the correct parts and resolving any technical or fitment inquiries. Contact us via phone at 01953 603420 or use our online web chat for immediate assistance.
  • Extensive Product Range: With over 4000 products and continual additions, we are the leading supplier of aftermarket electrical parts and accessories for motorcycles, ATVs, tractors, and more.
  • Convenience and Affordability: Enjoy a convenient ordering process either online or by phone, with reliable and swift delivery services.

For more information on our policies, terms, and new product offerings, visit our website. You can also explore our diagnostic solutions and learn about our office hours and contact details.

Company Details:

Choose Moto-Electrical as your trusted supplier for top-quality electrical parts, competitive pricing, expert support, and an extensive range of reliable products meeting all your needs.

Connect with us on social media for the latest updates and promotions: Facebook, Instagram

Specifications

  • Number of wires : 8
  • Number of terminals : 8
  • Alternator : Yellow to Yellow = 0.4 ohms+/-20%
  • Source 1: Black/Red to Black/White = 180 ohms+/-20%
  • Source 2 : White/Red to Black/Red = 17 ohms+/-20%
  • Back is Ground
Before installing your new stator
  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
Interchanges/Cross References
Model
Code
3003-010
Arctic Cat
3003-379
Arctic Cat
3003-532
Arctic Cat
3003-533
Arctic Cat
3003-567
Arctic Cat
3003-569
Arctic Cat
3003-570
Arctic Cat
3003-578
Arctic Cat
3003-976
Arctic Cat
3004-829
Arctic Cat
3004-833
Arctic Cat
3005-346
Arctic Cat
3005-375
Arctic Cat
3002-887
Arctic Cat
3003-157
Arctic Cat
3003-326
Arctic Cat
3003-400
Arctic Cat
3003-584
Arctic Cat
3004-043
Arctic Cat
3002-887
ArcticCat
3003-010
ArcticCat
3003-157
ArcticCat
3003-326
ArcticCat
3003-379
ArcticCat
3003-400
ArcticCat
3003-532
ArcticCat
3003-533
ArcticCat
3003-567
ArcticCat
3003-569
ArcticCat
3003-570
ArcticCat
3003-578
ArcticCat
3003-976
ArcticCat
3004-829
ArcticCat
3004-833
ArcticCat
3005-375
ArcticCat
