SKU: RM01325
Item Condition: New

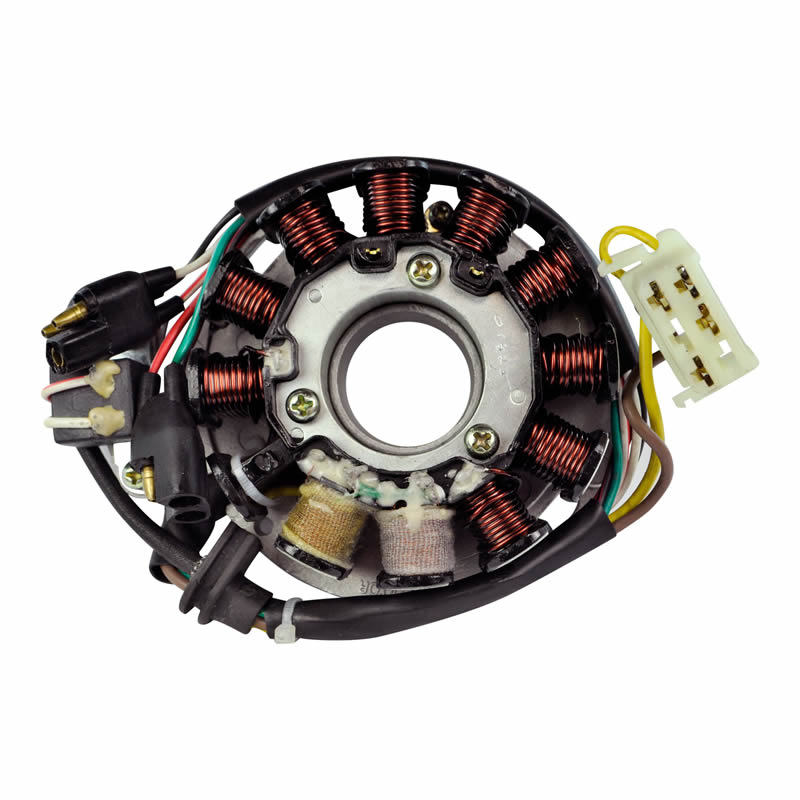

Stator Coil For Polaris Snowmobile 440 500 600 XC XCR RMK Classic is a quality, durable and reliable part that is easy to use.
Why Choose Us?
For more information on our policies, terms, and new product offerings, visit our website. You can also explore our diagnostic solutions and learn about our office hours and contact details.
Company Details:
Choose Moto-Electrical as your trusted supplier for top-quality electrical parts, competitive pricing, expert support, and an extensive range of reliable products meeting all your needs.
Connect with us on social media for the latest updates and promotions: Facebook, Instagram
| Unit Type | Part |
| Part Type | STATOR COIL |
| Dimension | 99mm OD x 37.6mm ID x 32mm Outer Stack Height x 15.5mm Inner Stack Height Harness & Plug 220mm OAL (2) Small 3-Pin Plugs 345mm OAL Pickup Wire is 50mm OAL From Mtg. Grommet Ground Wire & Eyelet are 130-140mm OAL From Mtg. Grommet |
| Brief | Polaris Snowmobiles 1999-09 |

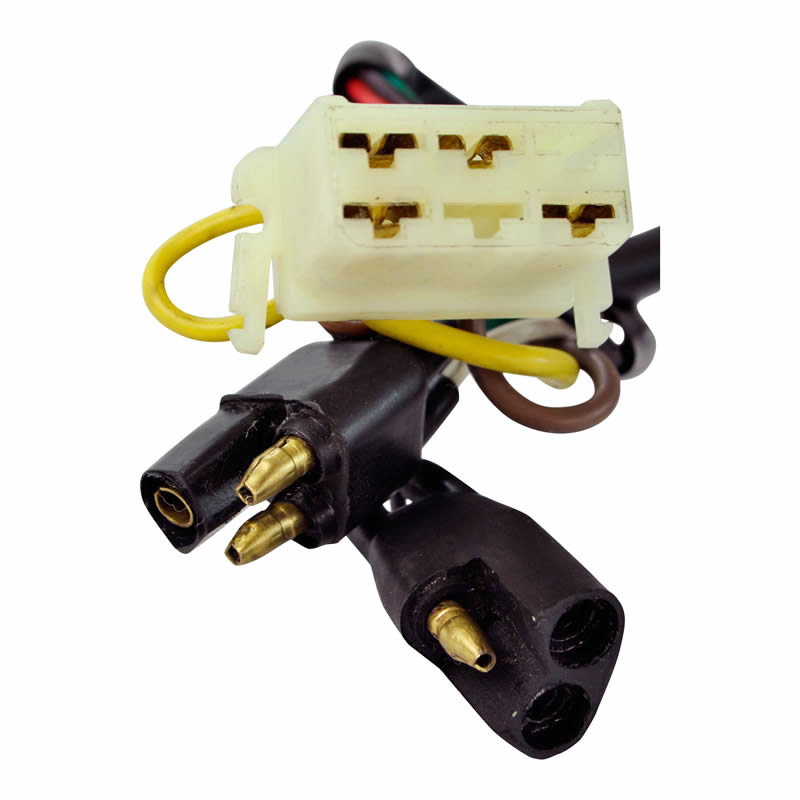

| Detailed | The 6-Pin Plastic Plug Has 1 Yellow (Looped Into 2 Plugs), and 1 Brown Wire (Looped Into 2 Plugs), With the Top Middle and Bottom Left (Below the Ground Wire) Empty.The (2) 3-Pin Plugs are (1) Green, Red, Black w/Red, and (2) Black, White, Red w/White Wires. |
