home / Products / Stator Coil For Suzuki VS1400 GL Intruder Boulevard S83 VS1400 GLP Intruder

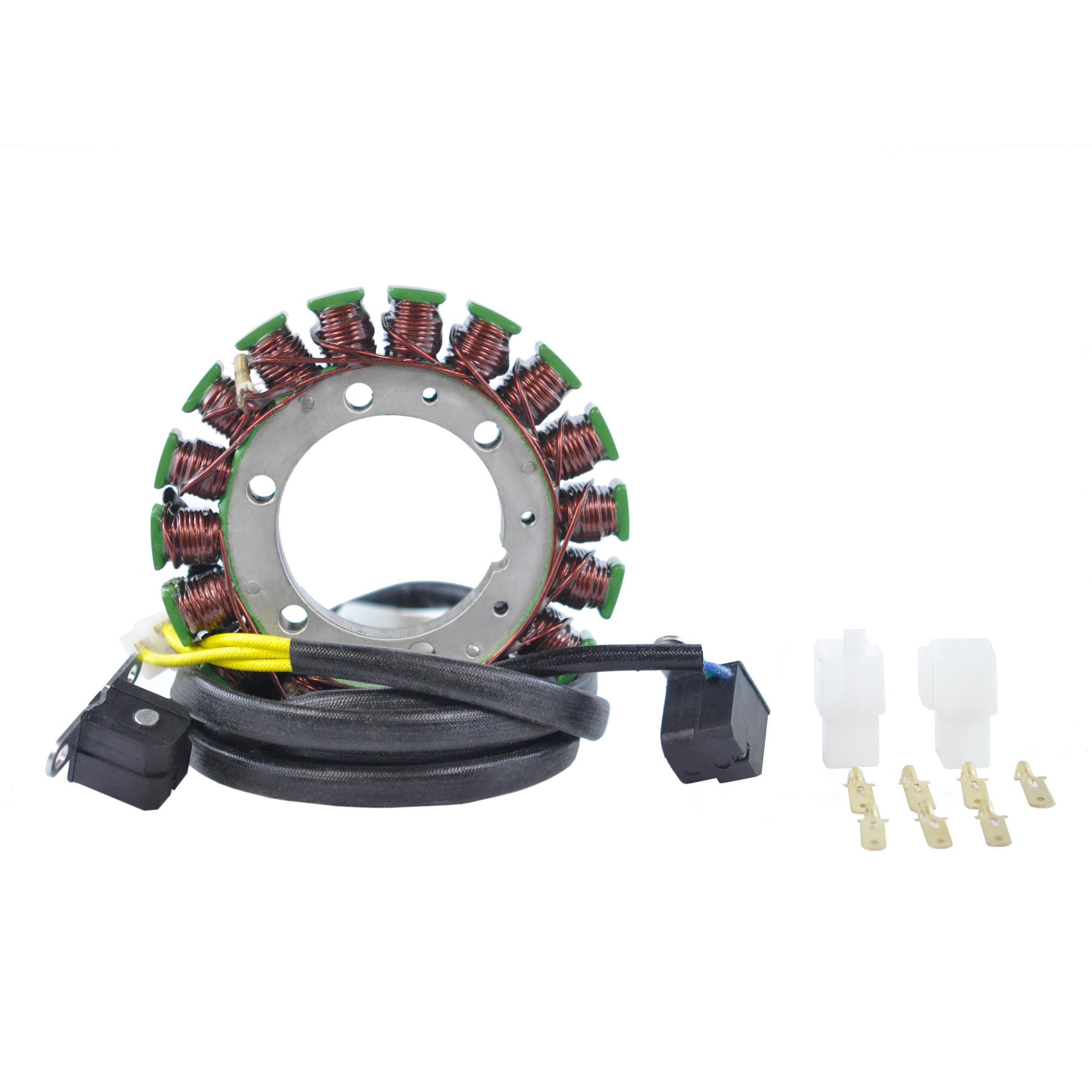

Stator Coil For Suzuki VS1400 GL Intruder Boulevard S83 VS1400 GLP Intruder

SKU: RMS010-100036

Item Condition: New

local_shipping
Order by 3pm for same day dispatch*
|
touch_app
Click and collect*
In Stock
£161.20
(£161.20 exc. VAT)
Share:
Full Description
Technical Specification

Stator Coil For Suzuki VS1400 GL Intruder Boulevard S83 VS1400 GLP Intruder

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials.
  • Highest grade copper windings, resistant to 200°C.
  • Pick up pulsar coil included.
  • Connector included.

Stator Coil For Suzuki VS1400 GL Intruder Boulevard S83 VS1400 GLP Intruder is a quality, durable and reliable part that is easy to use.

Fits Models

CF Moto ATV Models:

  • CF 500 (2007-2009)
  • CF 500 (2011-2014)
  • X5 500 (2011-2015)

CF Moto UTV Models:

  • UFORCE 500 (2014-2015)

Replaces OEM

  • 32101-38B00
  • 32101-38B01
  • 32101-38B02

Why Choose Us?

  • Expert Fitment Support: Our team is dedicated to assisting you in finding the correct parts and resolving any technical or fitment inquiries. Contact us via phone at 01953 603420 or use our online web chat for immediate assistance.
  • Extensive Product Range: With over 4000 products and continual additions, we are the leading supplier of aftermarket electrical parts and accessories for motorcycles, ATVs, tractors, and more.
  • Convenience and Affordability: Enjoy a convenient ordering process either online or by phone, with reliable and swift delivery services.

For more information on our policies, terms, and new product offerings, visit our website. You can also explore our diagnostic solutions and learn about our office hours and contact details.

Company Details:

Choose Moto-Electrical as your trusted supplier for top-quality electrical parts, competitive pricing, expert support, and an extensive range of reliable products meeting all your needs.

Connect with us on social media for the latest updates and promotions: Facebook, Instagram

Unit Type Part
Part Type STATOR COIL
Voltage 12
Dimension Internal diameter: 54mm External diameter: 115mm Thickness: 18mm Length of wires stator to grommet: 200mm Length of wires grommet to plug: 620mm Length of pickup coil's wire to grommet: 90mm & 170mm
Other Number of wires: 7 Number of plugs: 2 Number of pins: 7Wire to wire resistance: Alternator: Yellow between each Yellow = 0.4 ohms +/-20% Pickup: Blue to Green = 200 ohms +/-20% Source: Black to Yellow = 200 ohms +/-20%
Brief Suzuki Boulevard S83 VS1400 GL Intruder (1987-2009)
Installation Before installing your new stator
  • Check the AC output of the stator.
  • Replace any burnt or corroded connectors on the stator & regulator.
  • Check & repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors
Our stator may use a different wire colour code to your original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement & should be used as such. When bolting the stator in, always use a locking compound. If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
