Stator for Honda VT750 Shadow Aero/Spirit | OEM 31120-MEG-003

Check application & fitment

SKU: RM01591

Item Condition: New

local_shipping
Order by 3pm for same day dispatch*
|
touch_app
Click and collect*
In Stock
£183.00
(£152.50 exc. VAT)
Full Description
Technical Specification

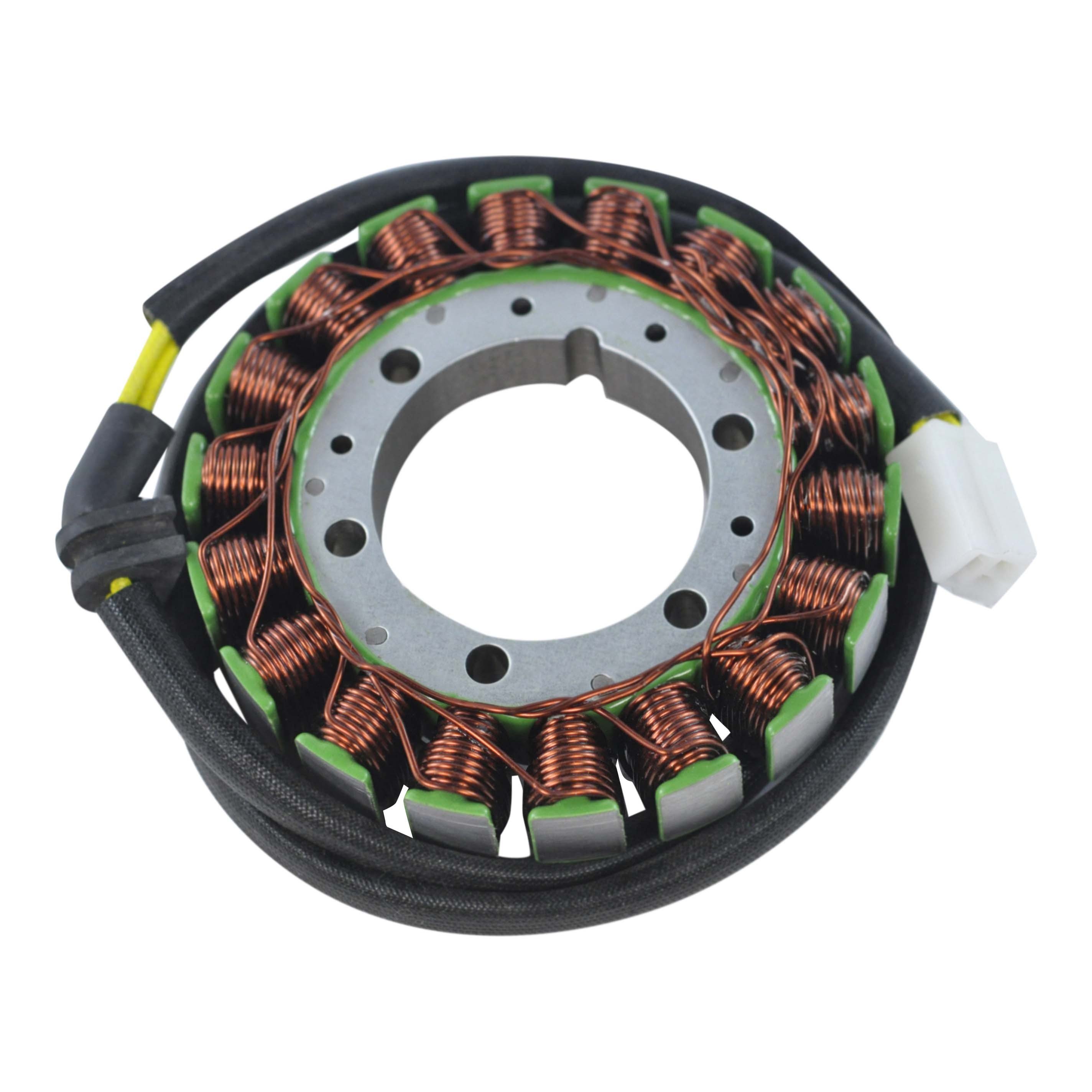

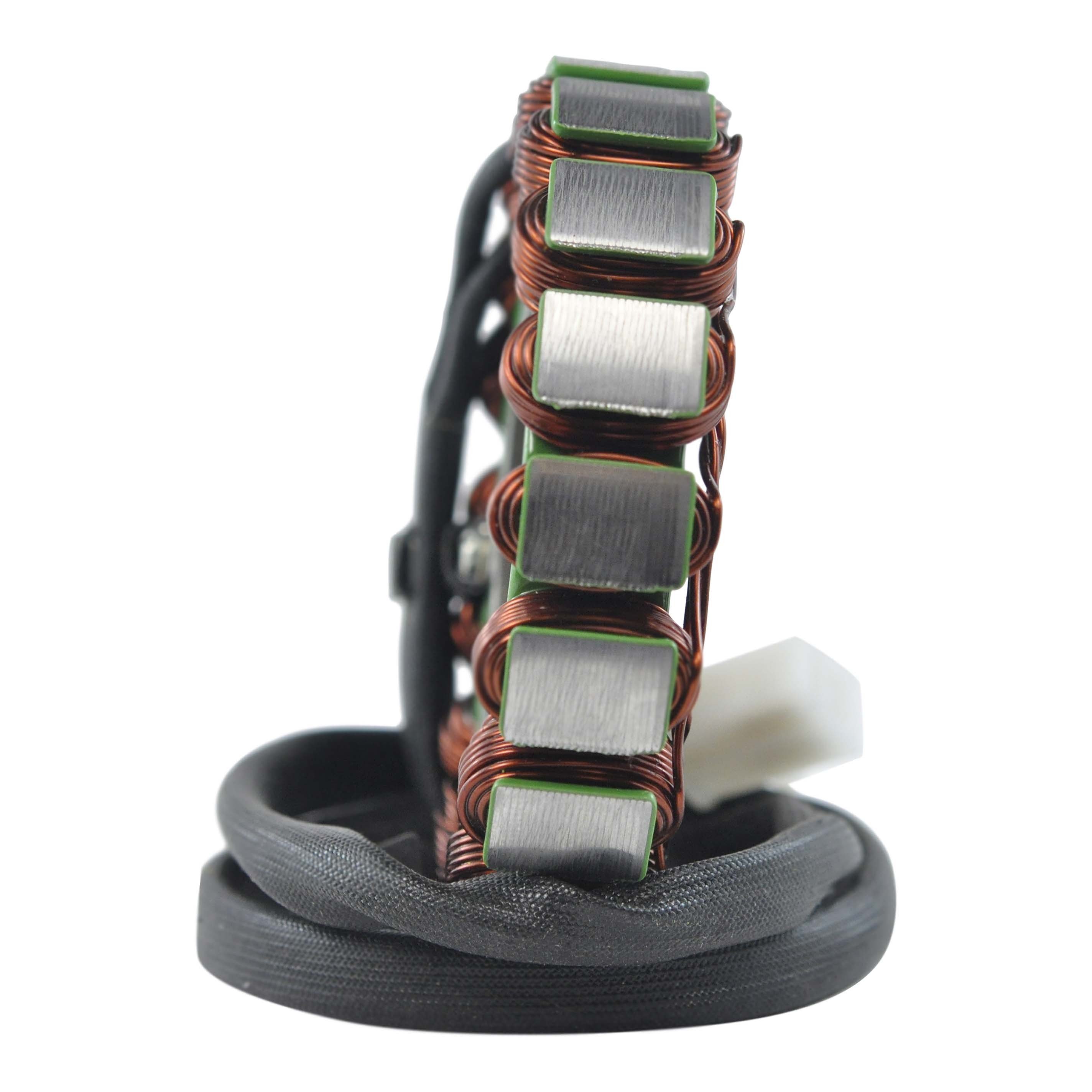

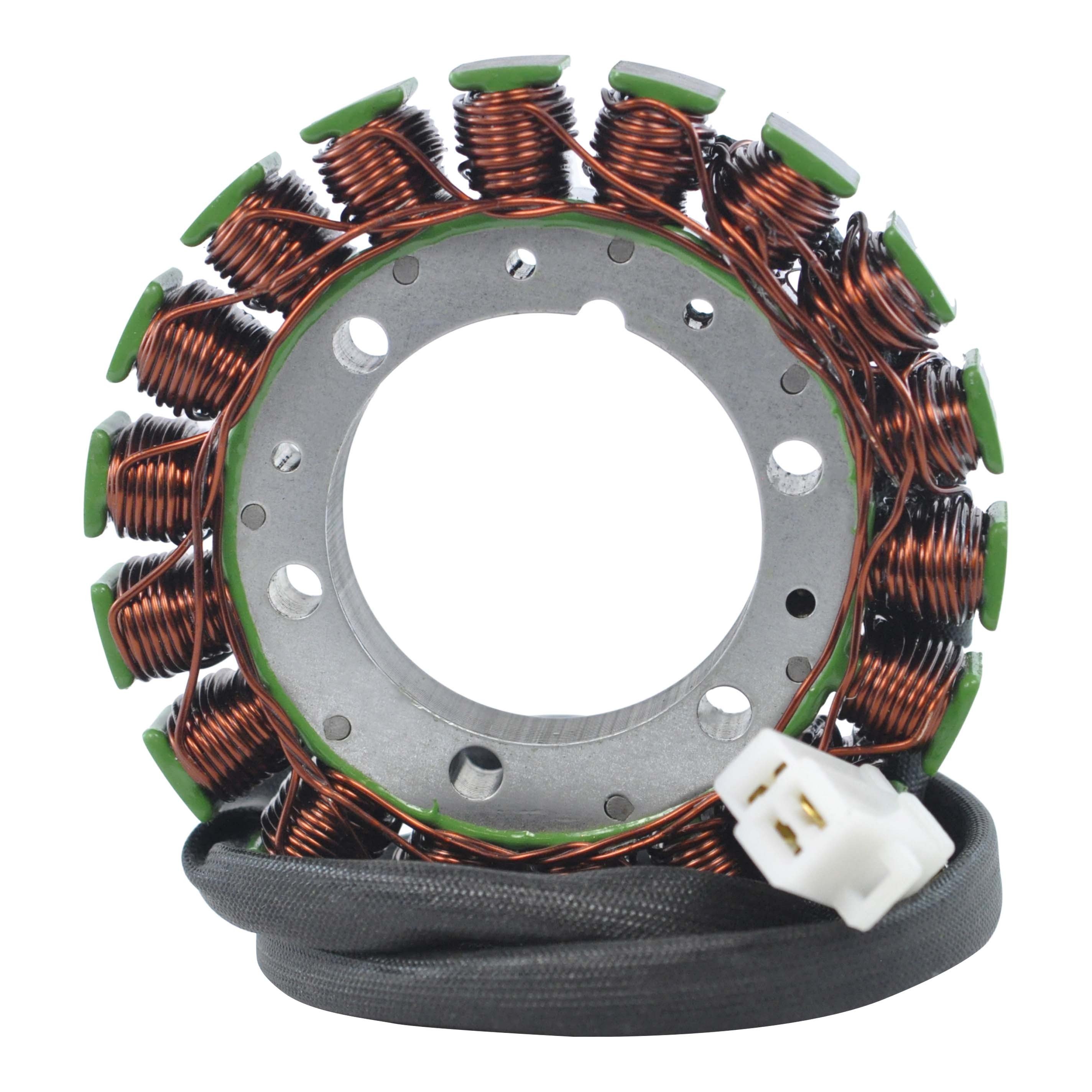

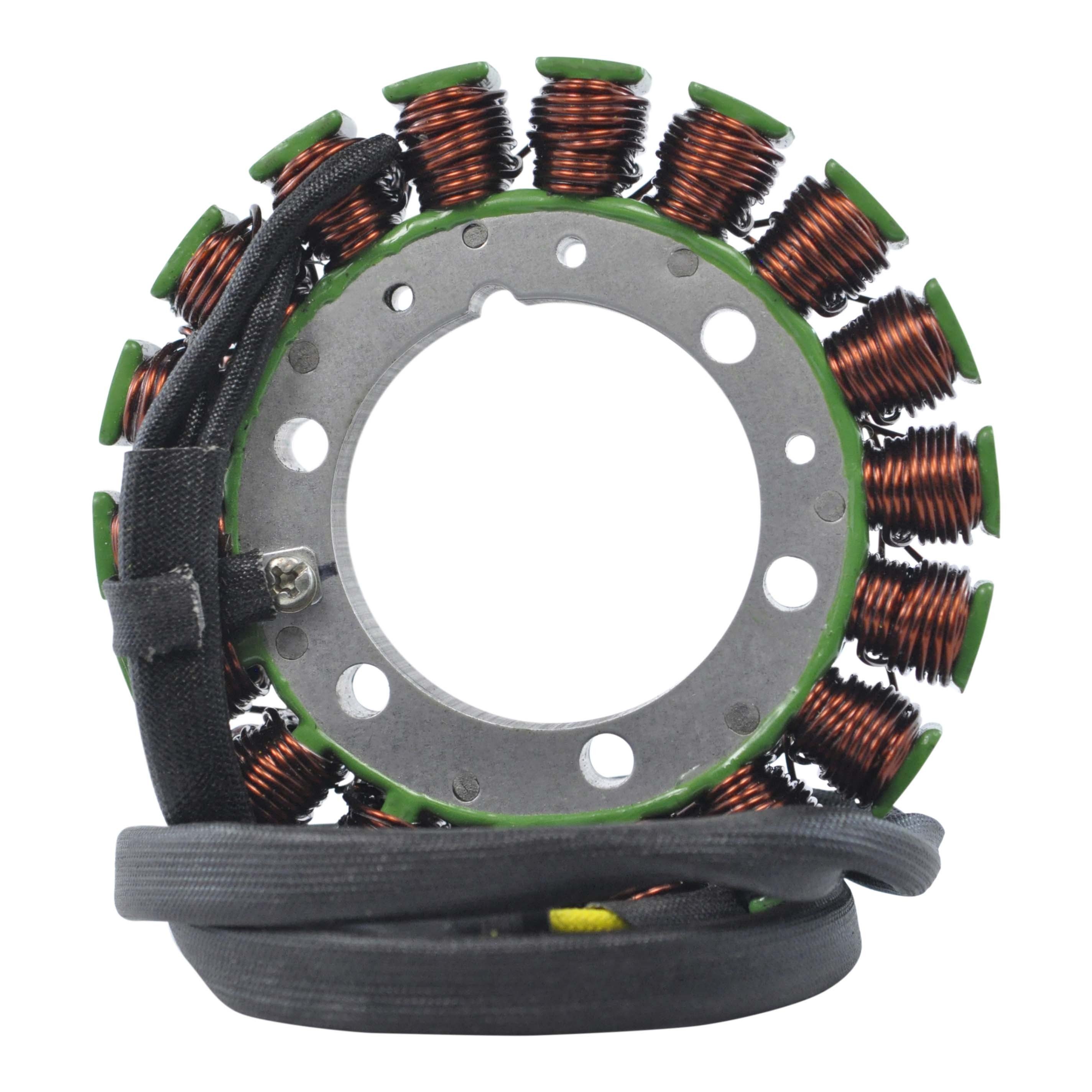

Stator for Honda VT750 Shadow Aero/Spirit | OEM 31120-MEG-003

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials.
  • Highest grade copper windings, resistant to 200°C

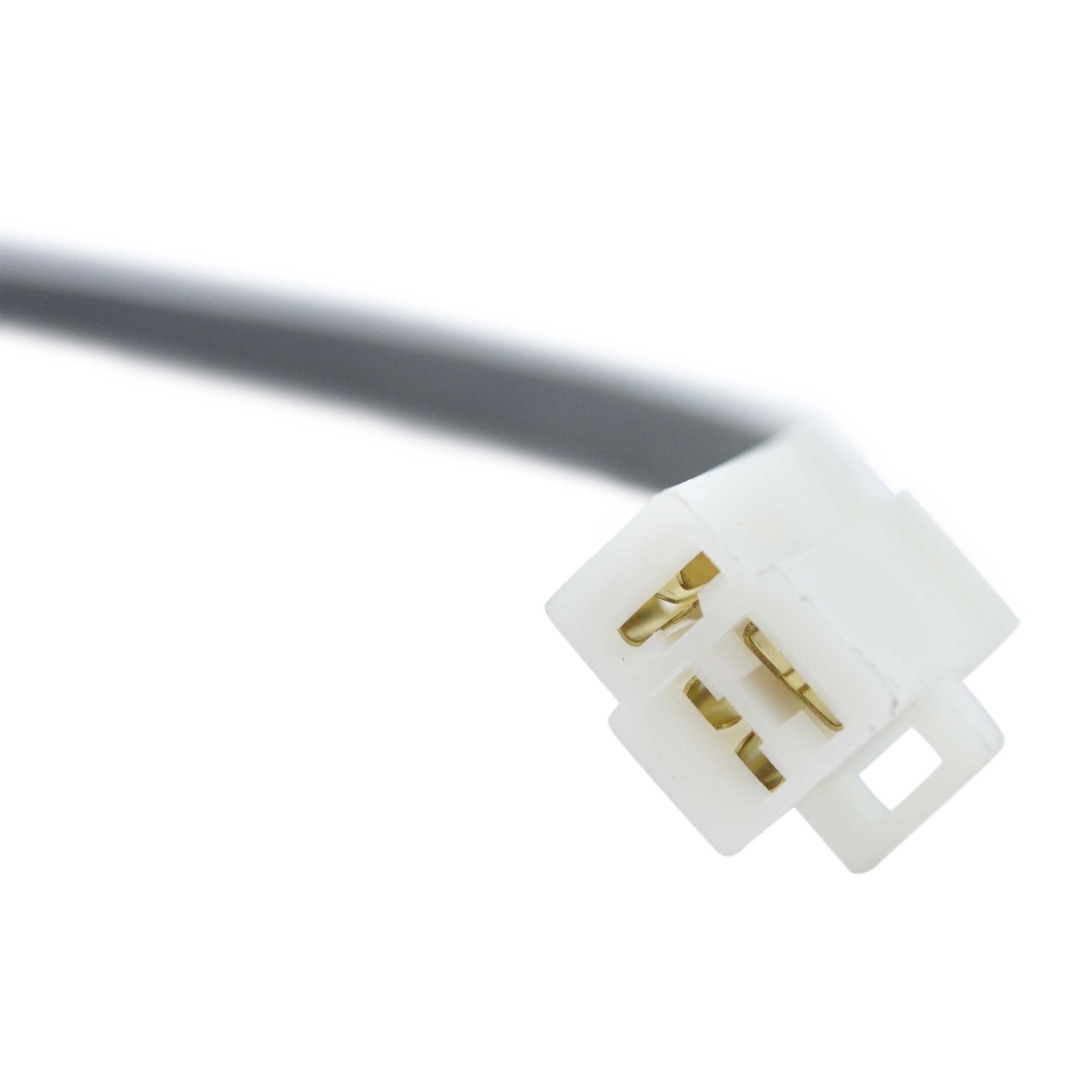

  • Connector included.
  • Rubber grommet included.

Stator for Honda VT750 Shadow Aero/Spirit | OEM 31120-MEG-003 is a quality, durable and reliable part that is easy to use.

Fits Models

  • Honda
    • VT750 Shadow C Aero (2004-09)
    • VT750 Shadow C Spirit (2007-09)

Replaces OEM

  • Honda
    • 31120-MEG-003


Why Choose Us?

  • Expert Fitment Support: Our team is dedicated to assisting you in finding the correct parts and resolving any technical or fitment inquiries. Contact us via phone at 01953 603420 or use our online web chat for immediate assistance.
  • Extensive Product Range: With over 4000 products and continual additions, we are the leading supplier of aftermarket electrical parts and accessories for motorcycles, ATVs, tractors, and more.
  • Convenience and Affordability: Enjoy a convenient ordering process either online or by phone, with reliable and swift delivery services.

For more information on our policies, terms, and new product offerings, visit our website. You can also explore our diagnostic solutions and learn about our office hours and contact details.

Company Details:

Choose Moto-Electrical as your trusted supplier for top-quality electrical parts, competitive pricing, expert support, and an extensive range of reliable products meeting all your needs.

Connect with us on social media for the latest updates and promotions: Facebook, Instagram

Unit Type Part
Part Type STATOR
Voltage 12
Dimension Interior diameter: 54mm Exterior diameter: 119.5mm Thickness: 18.3mm Length of wires stator to grommet: 120mm Length of wires grommet to plug: 600mm
Other Number of wires: 3 Number of plugs: 1 Number of pins: 3Wire to wire resistance: Alternator: Yellow to Yellow = 0.3ohms +/-20%
Brief Used on Honda:
  • VT750 Shadow C Aero (2004-09)
  • VT750 Shadow C Spirit (2007-09)
Installation Before installing your new stator
  • Check the AC output of the stator.
  • Replace any burnt or corroded connectors on the stator & regulator
  • Check & repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors
Our stator may use a different wire colour code than your original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. The stator is designed as a direct plug-in replacement & should be used as such. When bolting stator in, always use locking compound. If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010"
Part Application/Fitment
Interchanges/Cross References
Model
Code
Year
Manufacturer
Engine
VT750C Shadow Aero
RM01591
2004
HONDA
745cc
VT750C Shadow Aero
RM01591
2005
HONDA
745cc
VT750C Shadow Aero
RM01591
2006
HONDA
745cc
VT750C Shadow Aero
RM01591
2007
HONDA
745cc
VT750C Shadow Aero
RM01591
2008
HONDA
745cc
VT750C Shadow Aero
RM01591
2009
HONDA
745cc
VT750C2, -C2A Shadow Spirit
RM01591
2007
HONDA
745cc
VT750C2, -C2A Shadow Spirit
RM01591
2008
HONDA
745cc
VT750C2, -C2A Shadow Spirit
RM01591
2009
HONDA
745cc
Model
Code
31120-MEG-003
Honda
31120-MEG-003
Honda
