Name: Stator for Kawasaki KLR650 2008-10 | OEM 21003-0084
SKU: RM01522
Availability: InStock

Stator for Kawasaki KLR650 2008-10 | OEM 21003-0084

Check application & fitment

SKU: RM01522

Item Condition: New

local_shipping

Order by 3pm for same day dispatch*

touch_app

Click and collect*

In Stock

Full Description

Technical Specification

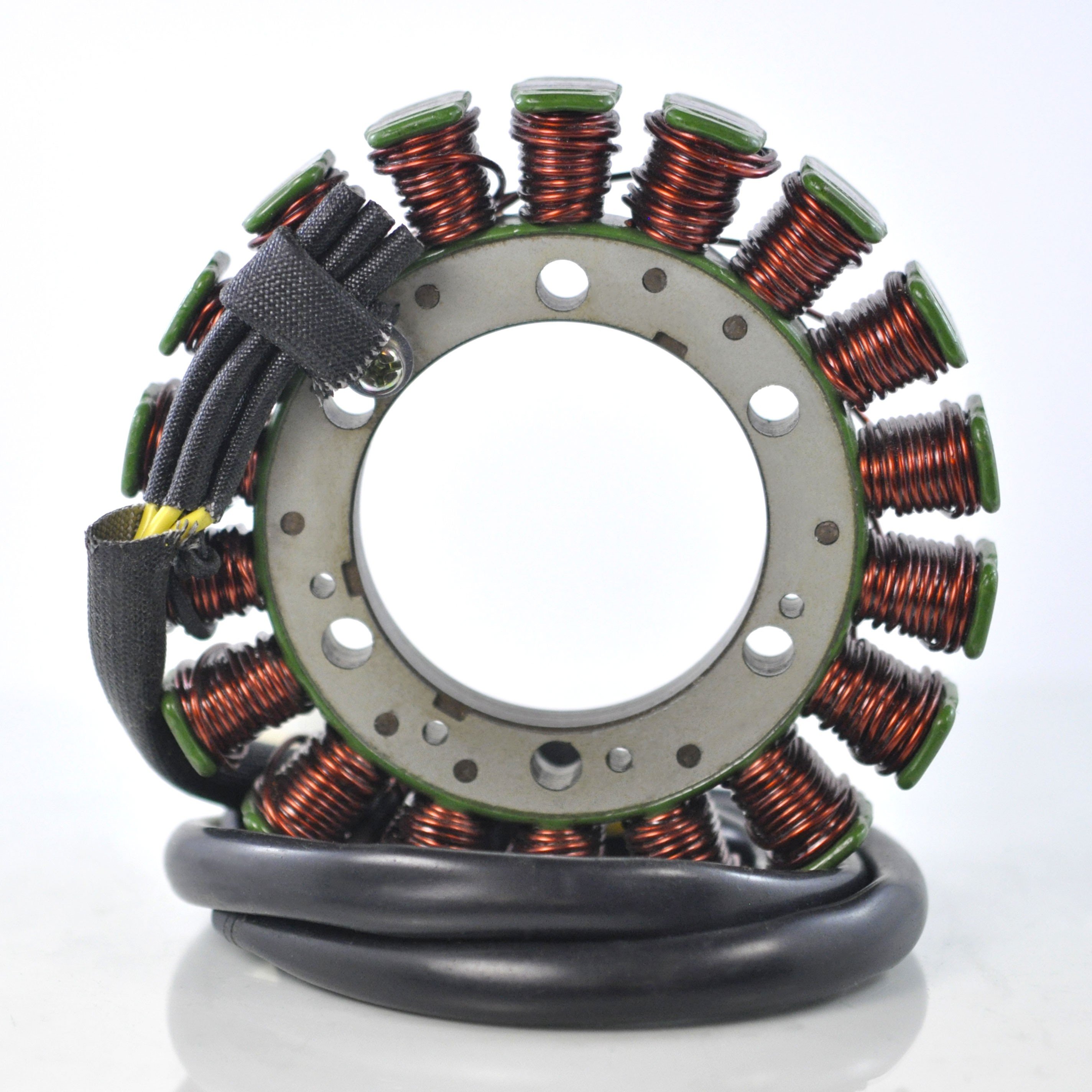

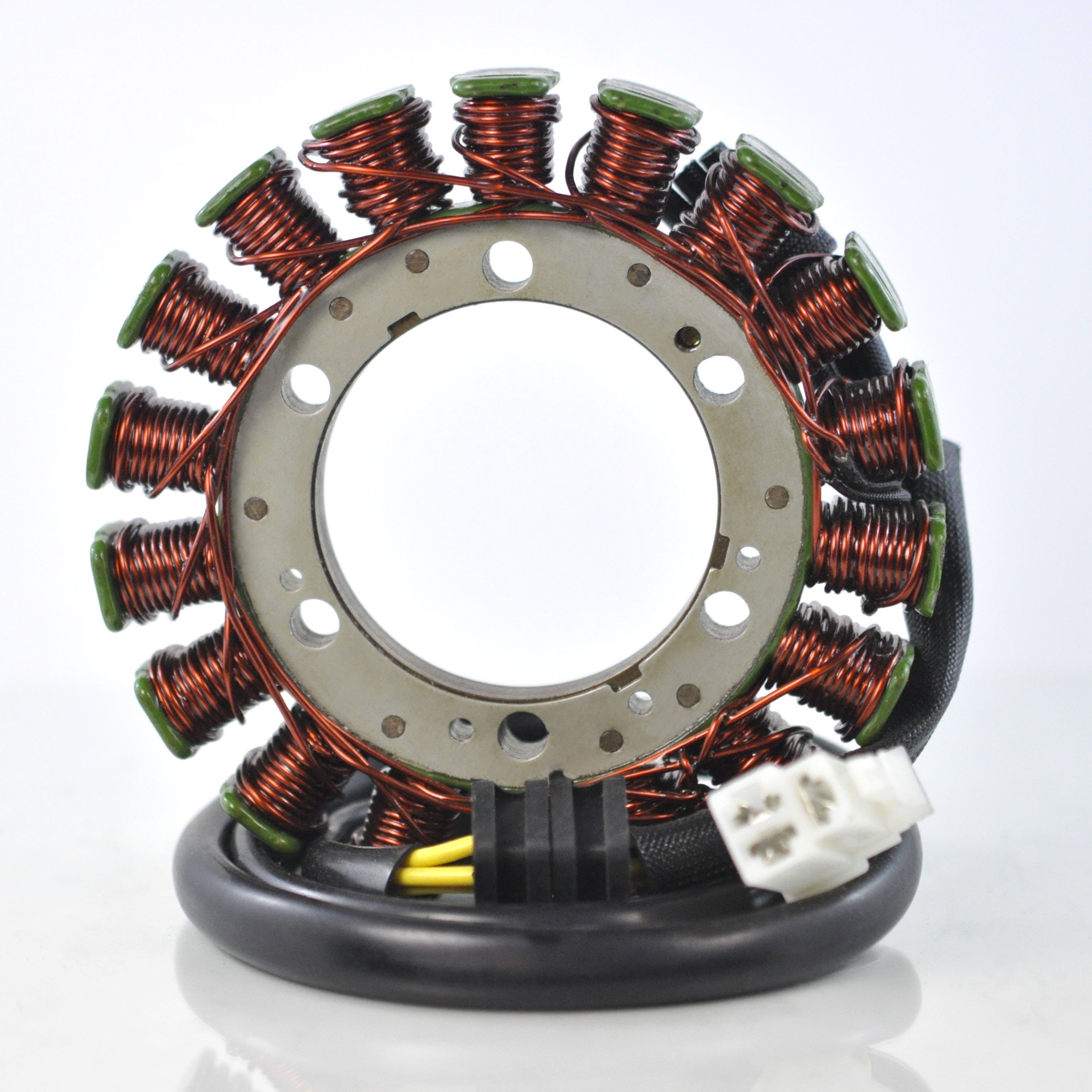

Stator for Kawasaki KLR650 2008-10 | OEM 21003-0084

Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200°C.

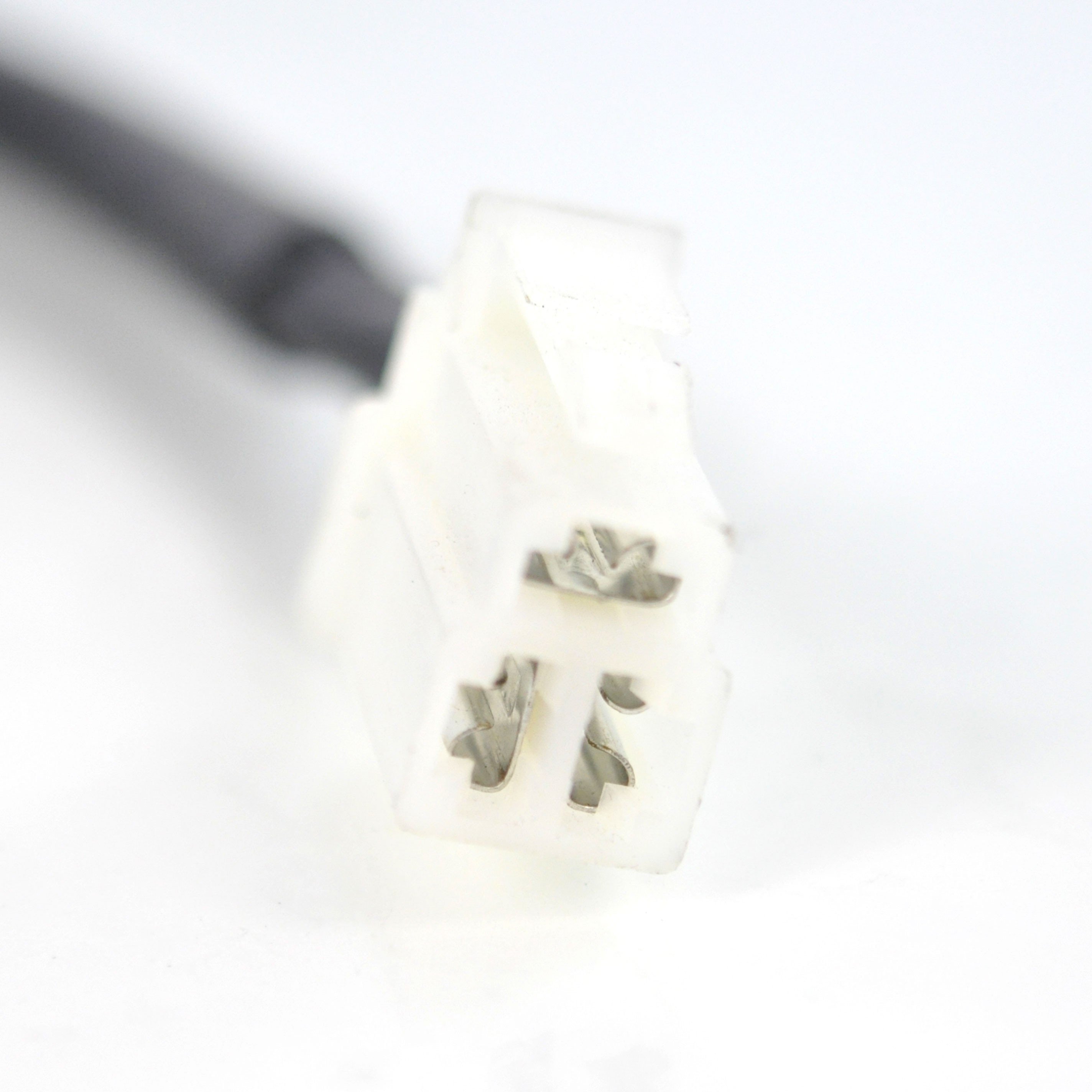

Connector included.

Stator for Kawasaki KLR650 2008-10 | OEM 21003-0084 is a quality, durable and reliable part that is easy to use.

Fits Models

Kawasaki
- KL650 (2008-10)

Replaces OEM

Kawasaki
- 21003-0045
- 21003-0084

Why Choose Us?

Expert Fitment Support: Our team is dedicated to assisting you in finding the correct parts and resolving any technical or fitment inquiries. Contact us via phone at 01953 603420 or use our online web chat for immediate assistance.
Extensive Product Range: With over 4000 products and continual additions, we are the leading supplier of aftermarket electrical parts and accessories for motorcycles, ATVs, tractors, and more.
Convenience and Affordability: Enjoy a convenient ordering process either online or by phone, with reliable and swift delivery services.

For more information on our policies, terms, and new product offerings, visit our website. You can also explore our diagnostic solutions and learn about our office hours and contact details.

Company Details:

Address: Eleven Mile Lane, Suton, Wymondham, NR18 9JL
Email: sales@motoelectrical.co.uk
Phone: 01953 603 420
Office Hours:
- Monday – Friday: 8AM – 5 PM
- Saturday & Sunday: Closed

Choose Moto-Electrical as your trusted supplier for top-quality electrical parts, competitive pricing, expert support, and an extensive range of reliable products meeting all your needs.

Connect with us on social media for the latest updates and promotions: Facebook, Instagram

Unit Type	Part
Part Type	STATOR COIL

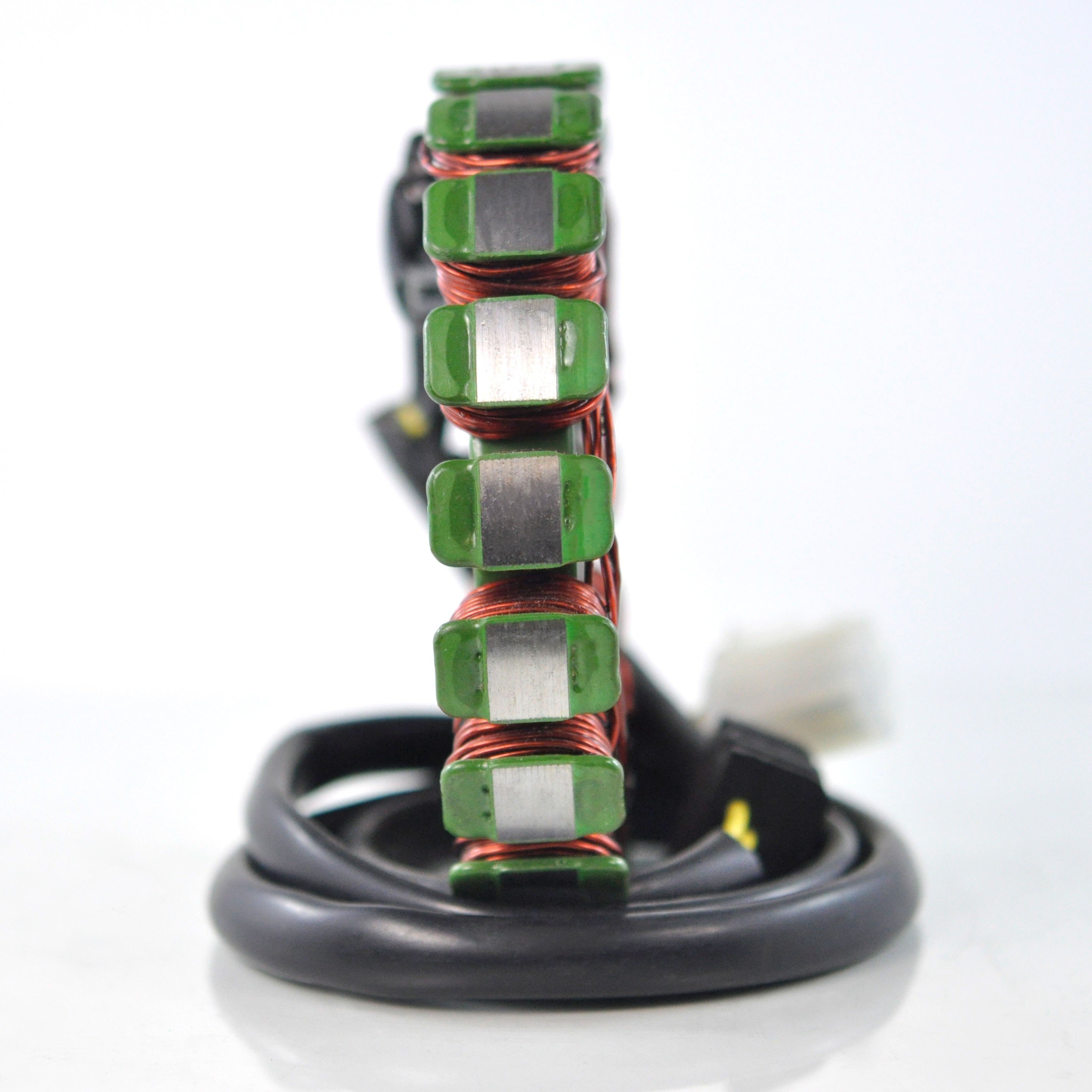

Dimensions	Internal diameter: 54mm External diameter: 115mm Thickness: 12mm Length of wires: stator to grommet: 115mm grommet to plug: 700mm
Other	Number of wires: 3 Number of plugs: 1 Number of pins: 3Wire to wire resistance: Alternator: Yellow between each yellow = 0.8ohms +/-20%
Brief	KawasakiKLR650 (2008-10)
Installation	Before installing your new stator Check the AC output of the stator. Replace any burnt or corroded connectors on the stator & regulator. Check & replair any melted wiring. Use hi-temp dielectric grease on all connectors. Our stator may use a different wire colour code to your original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement & should be used as such. When bolting the stator in, always use a locking compound. If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
