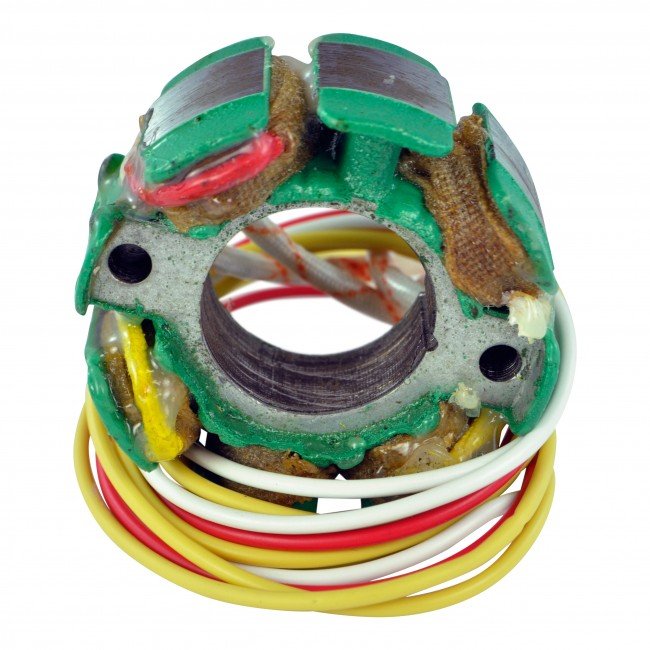

Name: Stator For Suzuki RM 125/250 1996-2001
SKU: RM01293
Availability: InStock

Stator For Suzuki RM 125/250 1996-2001

Check application & fitment

SKU: RM01293

Item Condition: New

local_shipping

Order by 3pm for same day dispatch*

touch_app

Click and collect*

In Stock

Full Description

Technical Specification

Stator For Suzuki RM 125/250 1996-2001

Quality Product
Made with premium materials

Stator For Suzuki RM 125/250 1996-2001 is a quality, durable and reliable part that is easy to use.

Fits Models

SUZUKI
- RM 125 (1996-1997, 2001)
- RM 250 (1996-2000)

Replaces OEM

SUZUKI
- 32101-36E00
- 32101-36F00
- 32101-37E00
- 32101-37E10
- 32101-37E30
- 32101-37E40
- 32101-37F00

Why Choose Us?

Expert Fitment Support: Our team is dedicated to assisting you in finding the correct parts and resolving any technical or fitment inquiries. Contact us via phone at 01953 603420 or use our online web chat for immediate assistance.
Extensive Product Range: With over 4000 products and continual additions, we are the leading supplier of aftermarket electrical parts and accessories for motorcycles, ATVs, tractors, and more.
Convenience and Affordability: Enjoy a convenient ordering process either online or by phone, with reliable and swift delivery services.

For more information on our policies, terms, and new product offerings, visit our website. You can also explore our diagnostic solutions and learn about our office hours and contact details.

Company Details:

Address: Eleven Mile Lane, Suton, Wymondham, NR18 9JL
Email: sales@motoelectrical.co.uk
Phone: 01953 603 420
Office Hours:
- Monday – Friday: 8AM – 5 PM
- Saturday & Sunday: Closed

Choose Moto-Electrical as your trusted supplier for top-quality electrical parts, competitive pricing, expert support, and an extensive range of reliable products meeting all your needs.

Connect with us on social media for the latest updates and promotions: Facebook, Instagram

Four wires Four terminals SOURCE 1 Red to White 28 ohms ±20% SOURCE 2 Yellow to Yellow 0.4 ohms ±20% Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors

Wire RED wire from RM stator to original BLACK/RED. Wire White wire to original White/Red on stator. The two yellow wires for the RM stator are provided for late model RM's that require a power valve supply. If your bike does not have these two wires you have two options. 1. Simply cut the wires and insulate them for they cannot short out. 2. Use it for a low wattage light. To do this you must route the two yellow wires through the stator harness. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If our stator includes a pickup coil, always make sure the air gap is correct. We suggest as close as possible no less than 0.010’’.
