Stator Ski Doo Formula Grand Touring MX-Z Skandic Summit 500

Check application & fitment

SKU: RM01008

Item Condition: New

local_shipping
Order by 3pm for same day dispatch*
|
touch_app
Click and collect*
In Stock
£234.00
(£195.00 exc. VAT)
Full Description
Technical Specification

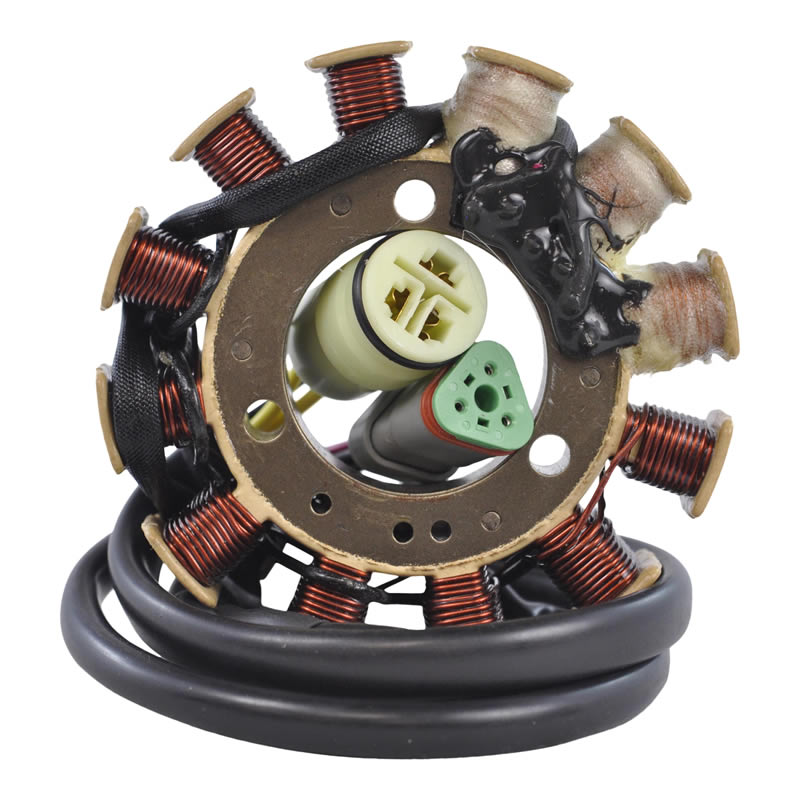

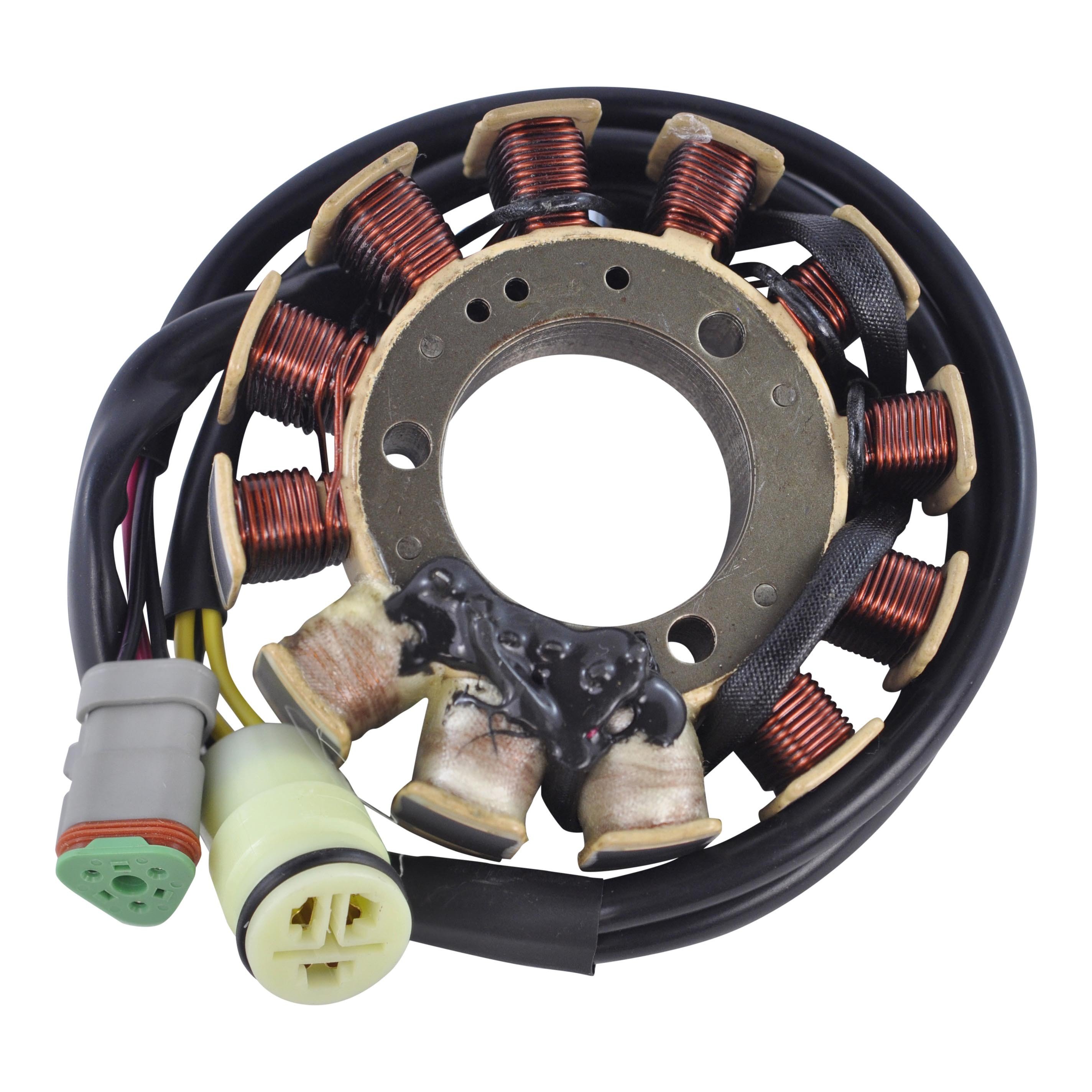

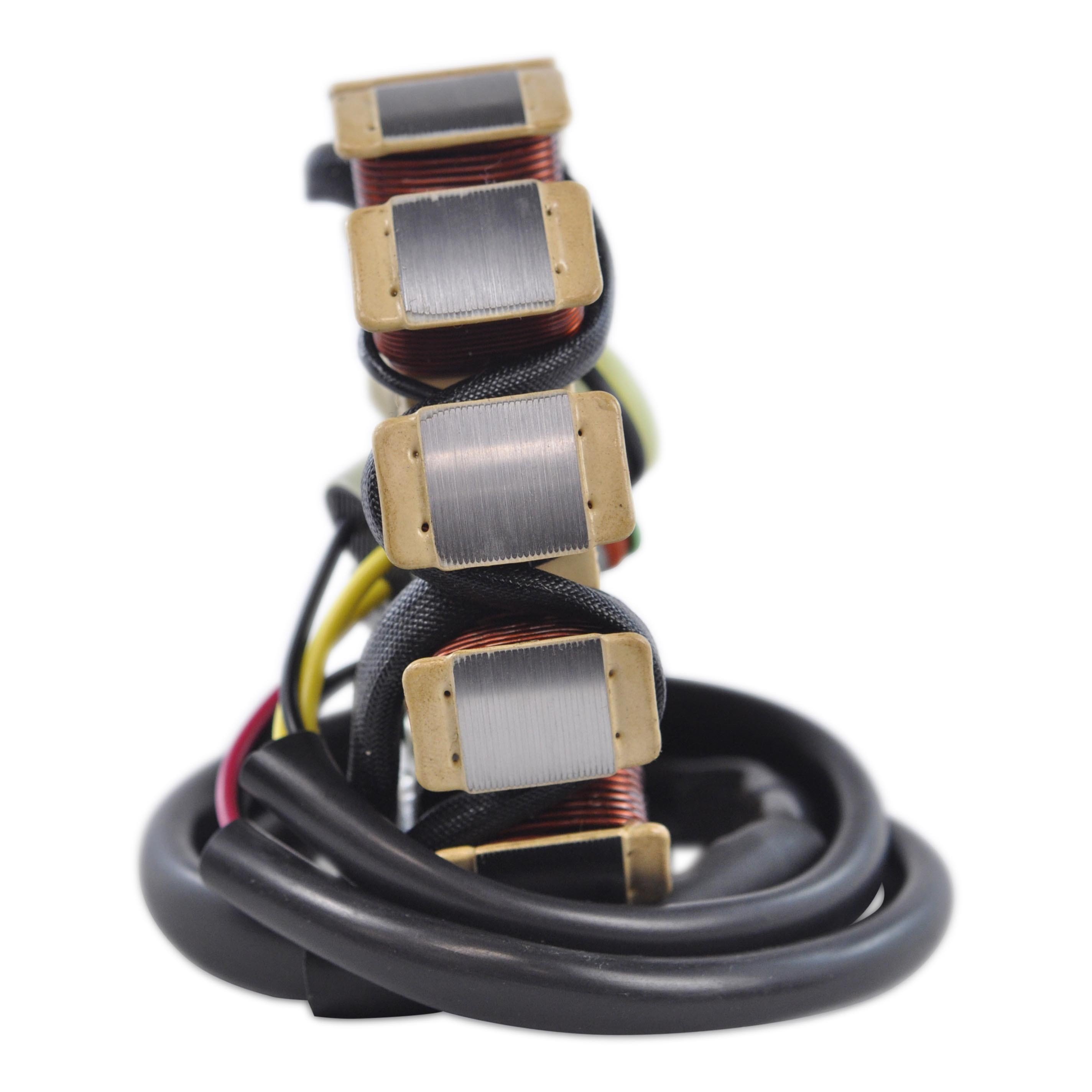

Stator Ski Doo Formula Grand Touring MX-Z Skandic Summit 500

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.

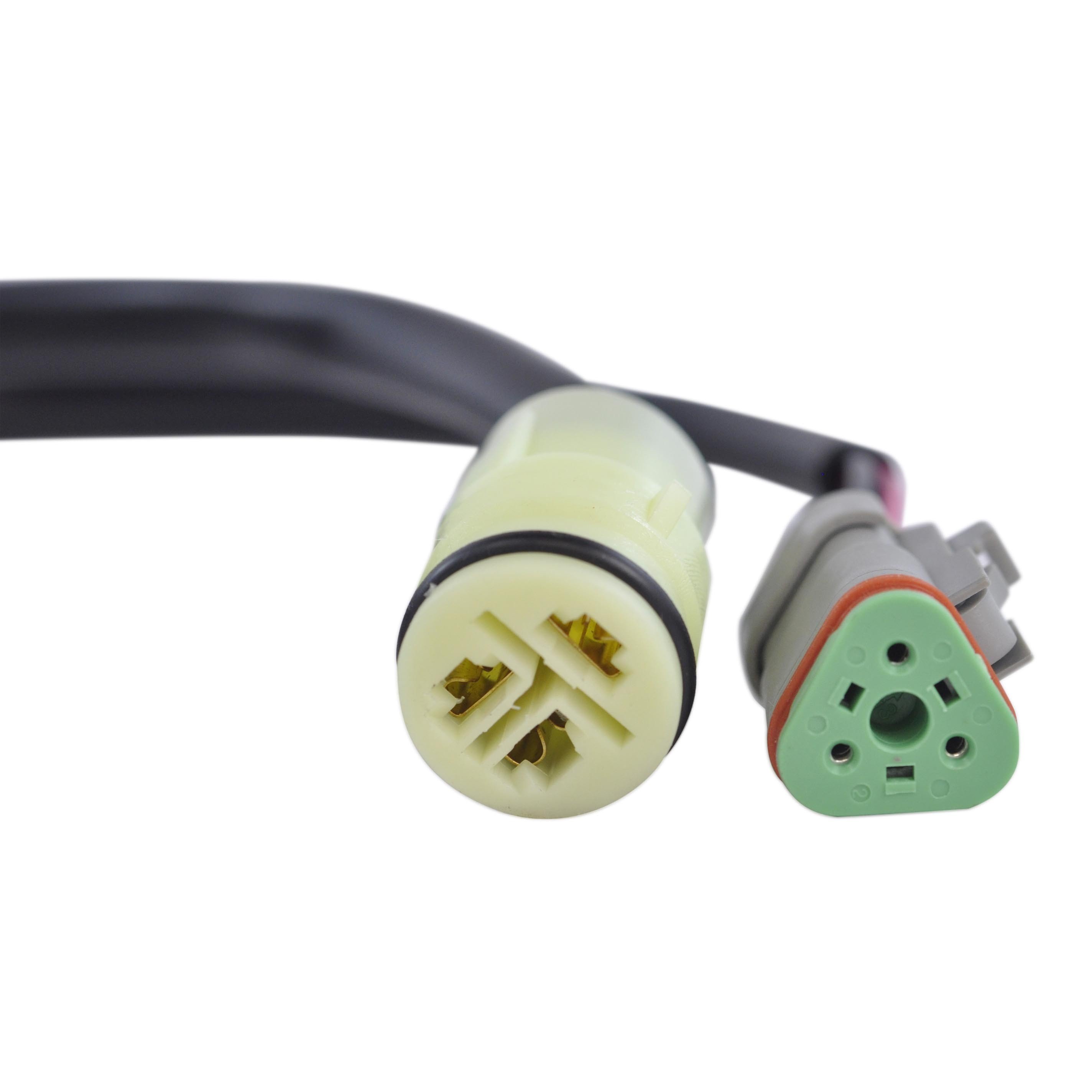

  • Connector included

Stator Ski Doo Formula Grand Touring MX-Z is a quality, durable and reliable part that is easy to use.


Why Choose Us?

  • Expert Fitment Support: Our team is dedicated to assisting you in finding the correct parts and resolving any technical or fitment inquiries. Contact us via phone at 01953 603420 or use our online web chat for immediate assistance.
  • Extensive Product Range: With over 4000 products and continual additions, we are the leading supplier of aftermarket electrical parts and accessories for motorcycles, ATVs, tractors, and more.
  • Convenience and Affordability: Enjoy a convenient ordering process either online or by phone, with reliable and swift delivery services.

For more information on our policies, terms, and new product offerings, visit our website. You can also explore our diagnostic solutions and learn about our office hours and contact details.

Company Details:

Choose Moto-Electrical as your trusted supplier for top-quality electrical parts, competitive pricing, expert support, and an extensive range of reliable products meeting all your needs.

Connect with us on social media for the latest updates and promotions: Facebook, Instagram

Source 1 : Red to Black/Red = 18 ohms+/-20% Alternator : Yellow to Yellow = 0.4 ohms+/-20% Before installing your new stator
  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
Part Application/Fitment
Interchanges/Cross References
Model
Code
Year
Manufacturer
Engine
MX Z 440X
RM01008
1999
SKI-DOO
443cc
MX Z 600
RM01008
1999
SKI-DOO
597cc
MX Z 700
RM01008
1999
SKI-DOO
698cc
Summit 600
RM01008
1999
SKI-DOO
597cc
Summit 700
RM01008
1999
SKI-DOO
698cc
Formula Deluxe 600
RM01008
2000
SKI-DOO
597cc
Formula Deluxe 700
RM01008
2000
SKI-DOO
698cc
Formula Z 600
RM01008
2000
SKI-DOO
597cc
Formula Z 700
RM01008
2000
SKI-DOO
698cc
Grand Touring 600
RM01008
2000
SKI-DOO
597cc
MX Z 500
RM01008
2000
SKI-DOO
494cc
MX Z 600
RM01008
2000
SKI-DOO
597cc
MX Z 700
RM01008
2000
SKI-DOO
698cc
Summit 600
RM01008
2000
SKI-DOO
597cc
Summit 700
RM01008
2000
SKI-DOO
698cc
MX Z 800
RM01008
2000
SKI-DOO
799cc
Summit 800
RM01008
2000
SKI-DOO
799cc
Formula Deluxe 500 (Fan)
RM01008
2001
SKI-DOO
503cc
Formula Deluxe 500 (Std)
RM01008
2001
SKI-DOO
503cc
Formula Deluxe 600
RM01008
2001
SKI-DOO
597cc
Formula Deluxe 700
RM01008
2001
SKI-DOO
698cc
Grand Touring 500
RM01008
2001
SKI-DOO
503cc
Grand Touring 600
RM01008
2001
SKI-DOO
597cc
Grand Touring 700
RM01008
2001
SKI-DOO
698cc
MX Z 500
RM01008
2001
SKI-DOO
494cc
MX Z 500 Fan
RM01008
2001
SKI-DOO
494cc
MX Z 600
RM01008
2001
SKI-DOO
597cc
MX Z 600 X HO
RM01008
2001
SKI-DOO
594cc
MX Z 700
RM01008
2001
SKI-DOO
698cc
MX Z 700X
RM01008
2001
SKI-DOO
698cc
MX Z 800
RM01008
2001
SKI-DOO
799cc
Skandic 500
RM01008
2001
SKI-DOO
494cc
Skandic Super Wide Track 500
RM01008
2001
SKI-DOO
494cc
Skandic Wide Track 500
RM01008
2001
SKI-DOO
494cc
Skandic Wide Track 600
RM01008
2001
SKI-DOO
597cc
Summit 600
RM01008
2001
SKI-DOO
597cc
Summit 700
RM01008
2001
SKI-DOO
698cc
Summit 800
RM01008
2001
SKI-DOO
799cc
MX Z 600
RM01008
2002
SKI-DOO
597cc
MX Z 600 X HO
RM01008
2002
SKI-DOO
594cc
MX Z 700
RM01008
2002
SKI-DOO
698cc
MX Z 700X
RM01008
2002
SKI-DOO
698cc
MX Z 800
RM01008
2002
SKI-DOO
799cc
MX Z 800 X
RM01008
2002
SKI-DOO
799cc
Skandic 500
RM01008
2002
SKI-DOO
494cc
Skandic Super Wide Track 500
RM01008
2002
SKI-DOO
494cc
Skandic Wide Track 500
RM01008
2002
SKI-DOO
494cc
Skandic Wide Track 600
RM01008
2002
SKI-DOO
597cc
Summit 600
RM01008
2002
SKI-DOO
597cc
Summit 700
RM01008
2002
SKI-DOO
698cc
Summit 800
RM01008
2002
SKI-DOO
799cc
MX Z 500
RM01008
2002
SKI-DOO
494cc
Model
Code
410922915
Ski-doo
410922923
Ski-doo
410922934
Ski-doo
410922936
Ski-doo
410922915
Skidoo
410922923
Skidoo
410922934
Skidoo
410922936
Skidoo
410922949
Skidoo
420888619
Lynx
410922914
Ski-doo
420888619
Ski-doo
410922949
Ski-doo
