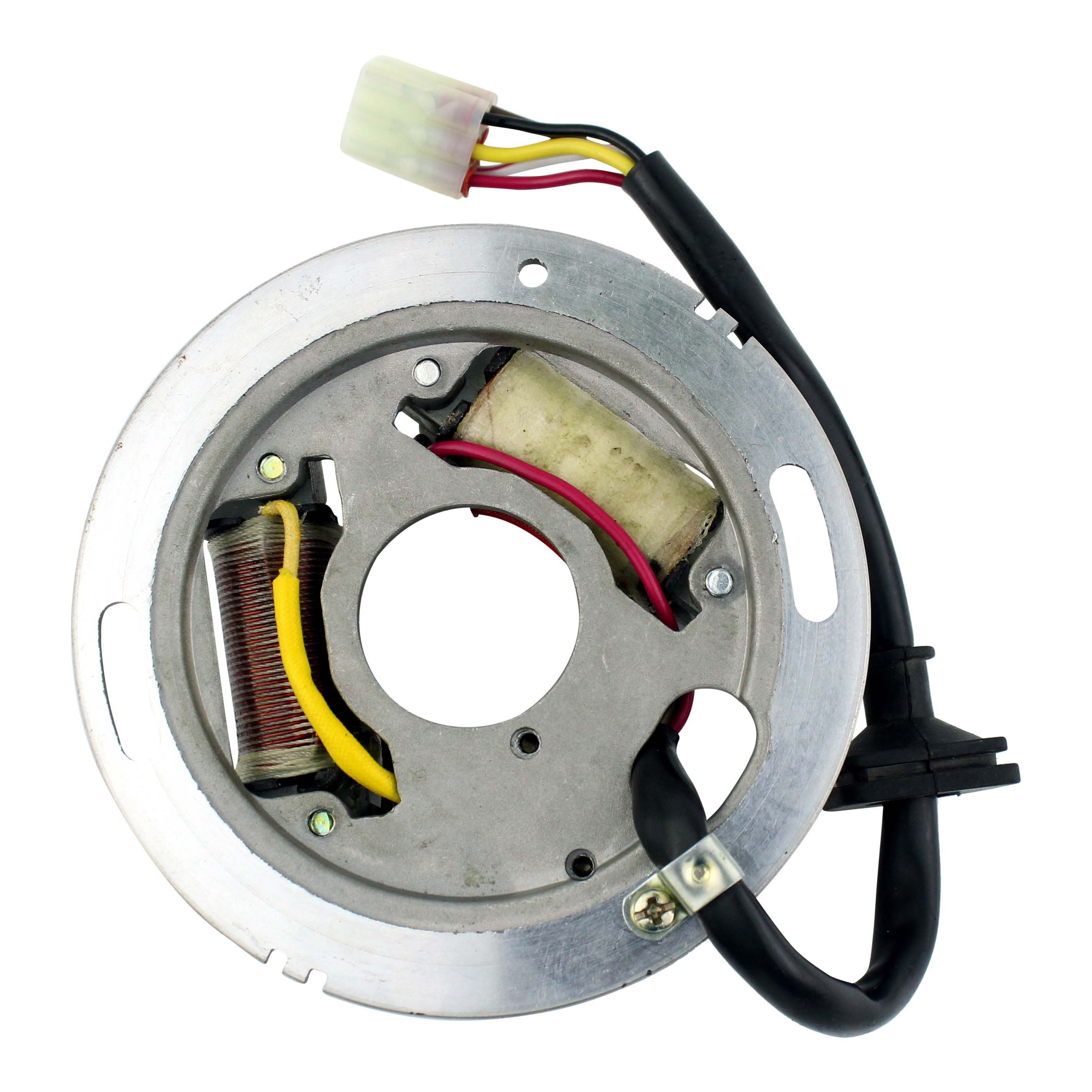

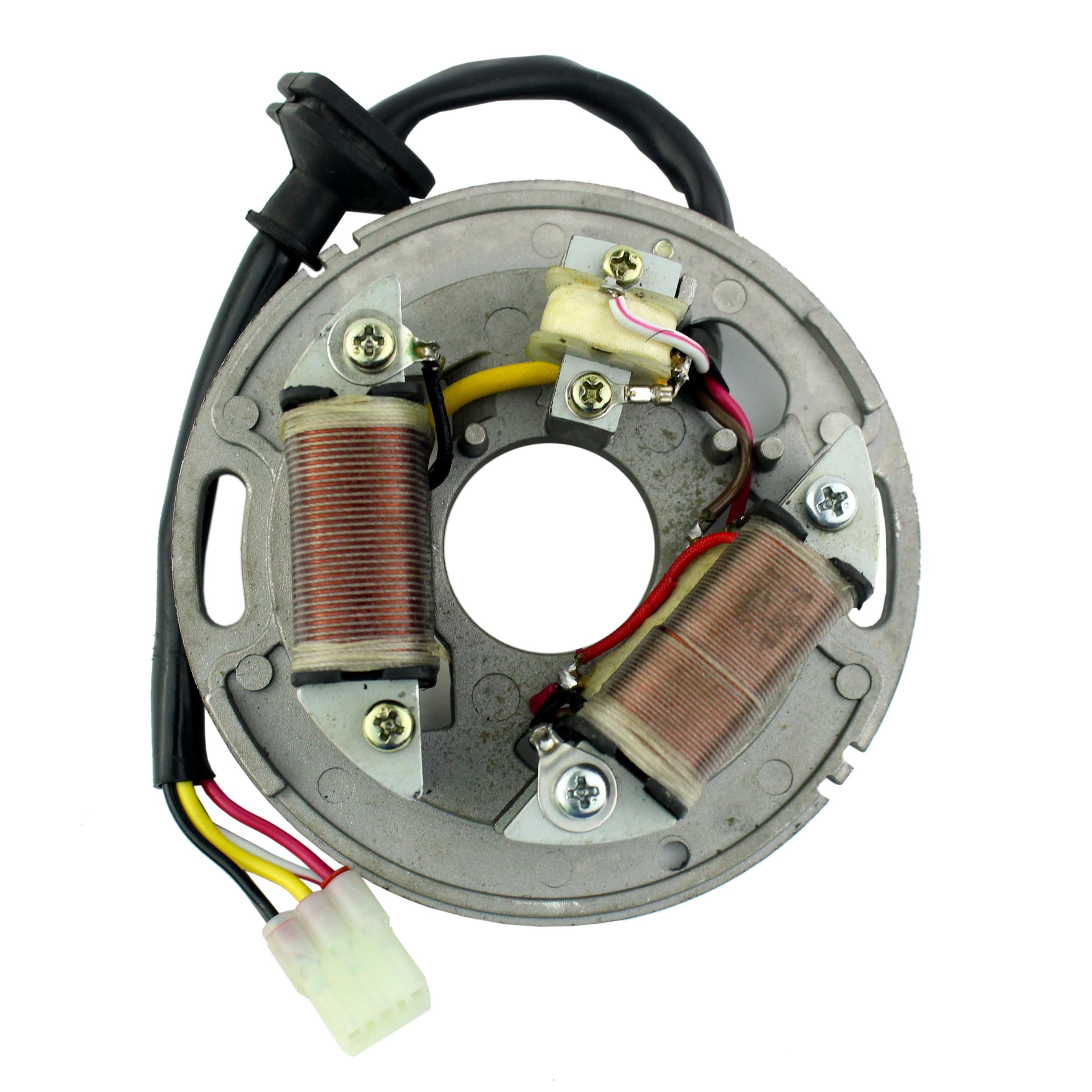

Yamaha Bravo 250 Carb F|C Stator Coil

Check application & fitment

SKU: RM01246

Item Condition: New

local_shipping
Order by 3pm for same day dispatch*
|
touch_app
Click and collect*
In Stock
£203.40
(£169.50 exc. VAT)
Full Description
Technical Specification

Yamaha Bravo 250 Carb F|C Stator Coil | Replaces 8BD-85560-00-00

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • Back Plate included

Yamaha Bravo 250 Carb F|C Stator Coil | Replaces 8BD-85560-00-00 is a quality, durable and reliable part that is easy to use.


Why Choose Us?

  • Expert Fitment Support: Our team is dedicated to assisting you in finding the correct parts and resolving any technical or fitment inquiries. Contact us via phone at 01953 603420 or use our online web chat for immediate assistance.
  • Extensive Product Range: With over 4000 products and continual additions, we are the leading supplier of aftermarket electrical parts and accessories for motorcycles, ATVs, tractors, and more.
  • Convenience and Affordability: Enjoy a convenient ordering process either online or by phone, with reliable and swift delivery services.

For more information on our policies, terms, and new product offerings, visit our website. You can also explore our diagnostic solutions and learn about our office hours and contact details.

Company Details:

Choose Moto-Electrical as your trusted supplier for top-quality electrical parts, competitive pricing, expert support, and an extensive range of reliable products meeting all your needs.

Connect with us on social media for the latest updates and promotions: Facebook, Instagram

Dimensions :
Interior diameter : 35mm
Exterior diameter : 125mm
Thickness : 5mm
Length of wires stator to grommet : 80mm
Length of wires grommet to plug : 140mm
Length of pickup coil's wire to grommet: 120mm

Other specifications :
Number of wires : 5
Number of plugs : 1
Number of pins : 5

Wire to wire resistance :
Alternator : Yellow to Black = 0.4ohms +/-20%
Pickup : White/Red to Black = 25ohms +/-20%
Source : Red to Black = 1.5ohms +/-20%
Source 2 : Red to Brown = 300ohms +/-20%

Interchanges/Cross References
Model
Code
8BD-85560-00-00
Yamaha
8BD-85560-00-00
Yamaha
