SKU: RM01303
Item Condition: New

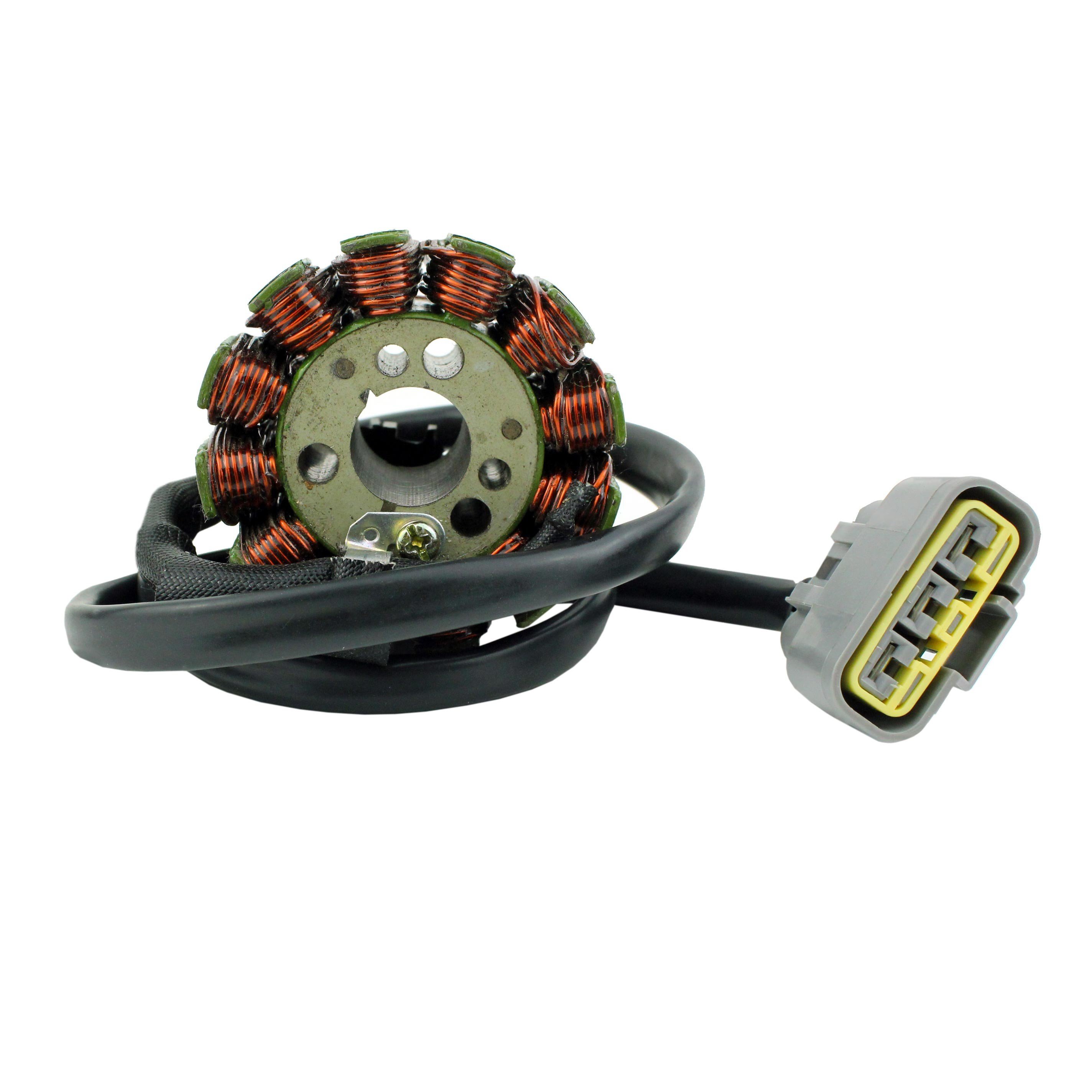

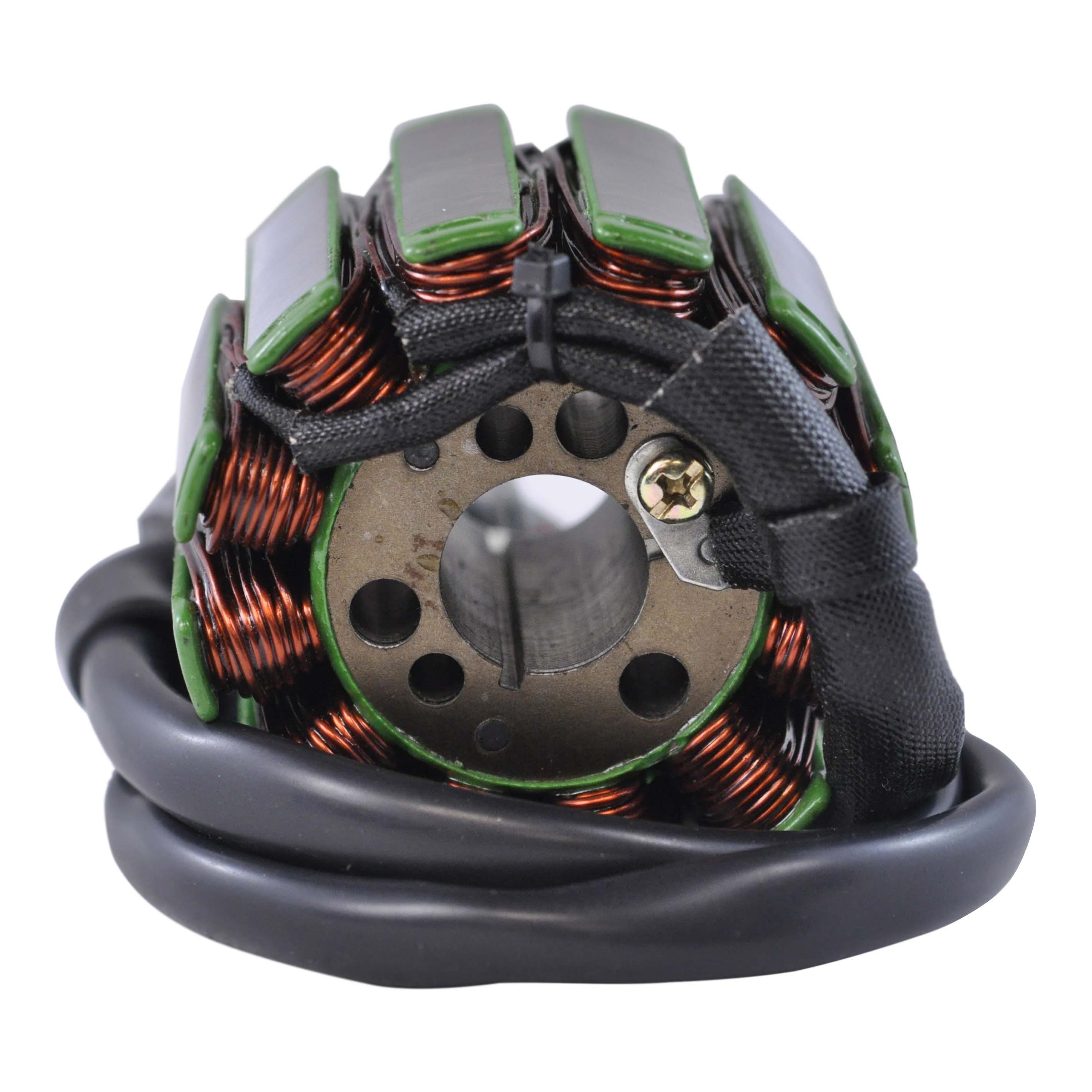

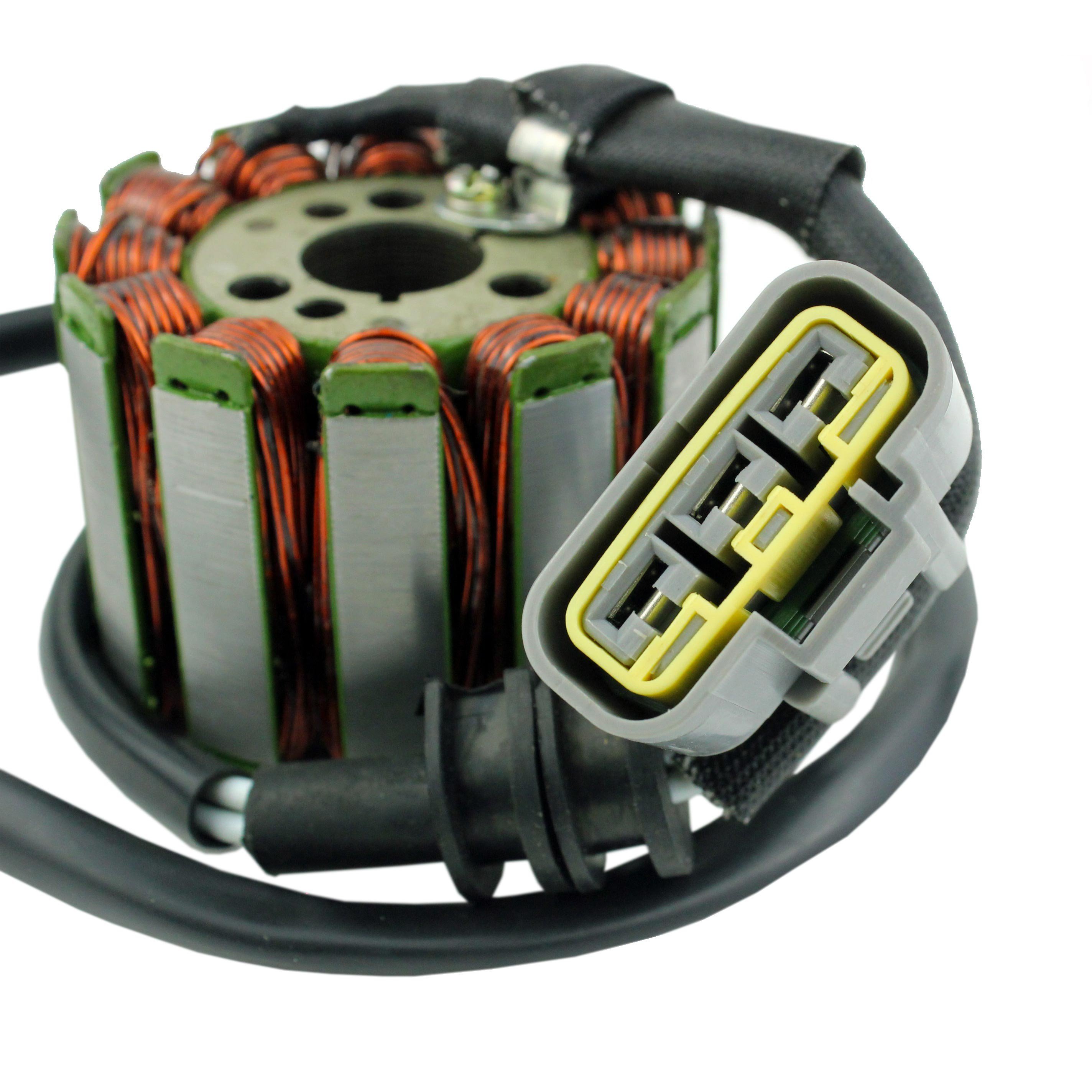

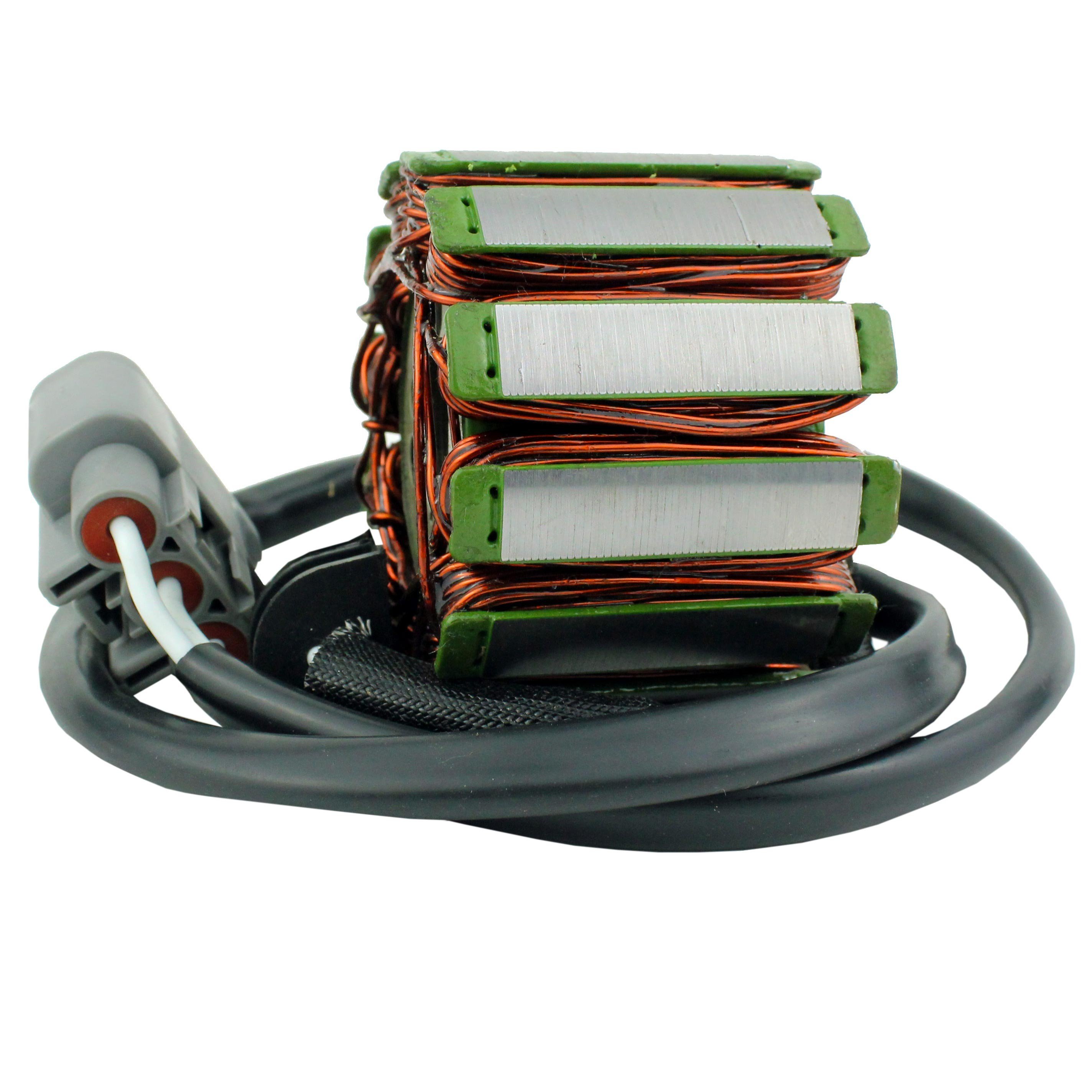

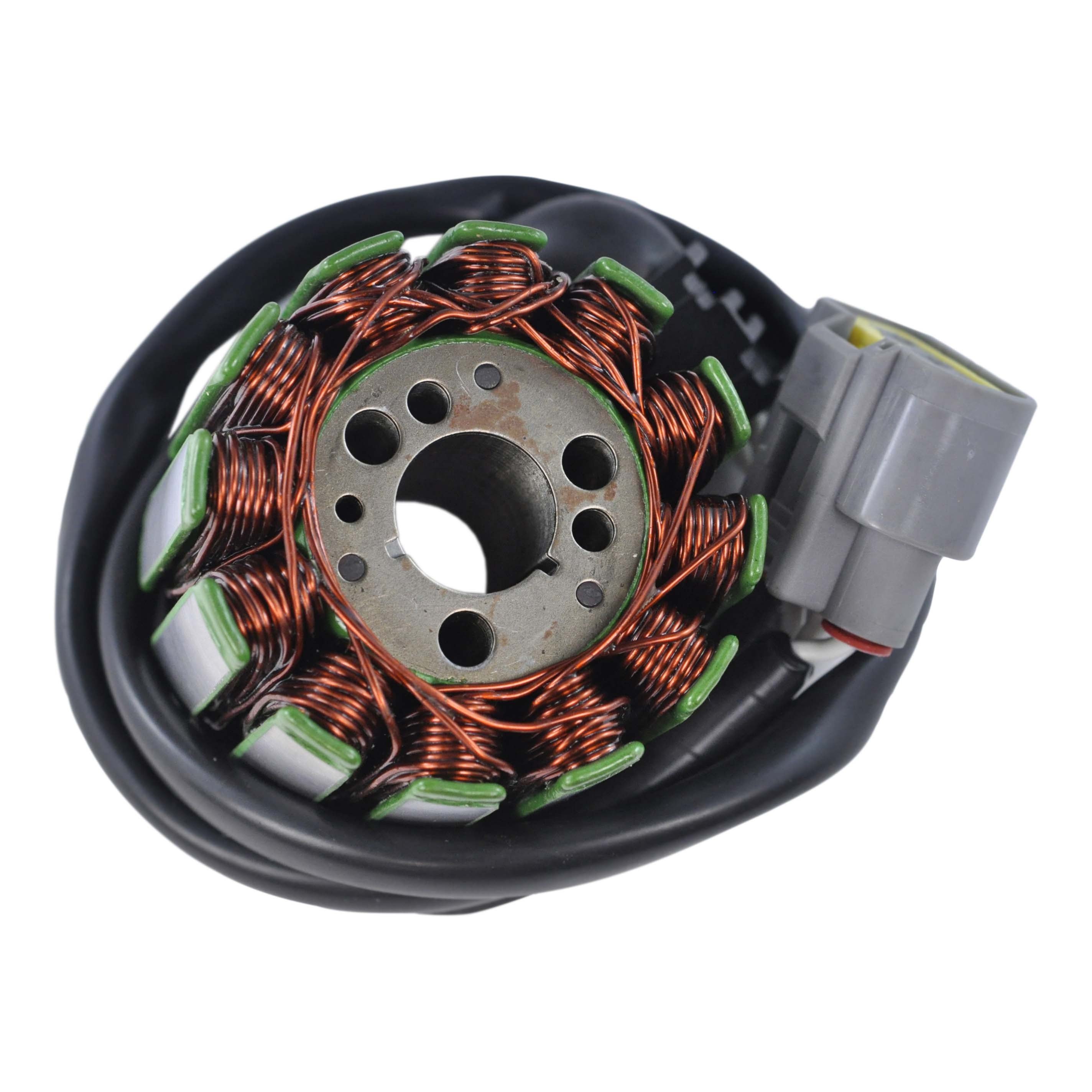

Yamaha FZ1 FZ8 YFZ-R1 Stator Coil Replaces 2D1-81410-10-00 is a quality, durable and reliable part that is easy to use.
Why Choose Us?
For more information on our policies, terms, and new product offerings, visit our website. You can also explore our diagnostic solutions and learn about our office hours and contact details.
Company Details:
Choose Moto-Electrical as your trusted supplier for top-quality electrical parts, competitive pricing, expert support, and an extensive range of reliable products meeting all your needs.
Connect with us on social media for the latest updates and promotions: Facebook, Instagram
Dimensions:
Interior diameter: 18mmÂ
Exterior diameter: 68mmÂ
Thickness: 42mmÂ
Length of wires stator to grommet: 125mm
Length of wires grommet to plug: 500mm
Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Wire to wire resistance:
Alternator: = 0.4ohms +/-20%
Before installing your new stator
Our stator may use a different wire color code than your original. `
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.
