SKU: RM01275
Item Condition: New

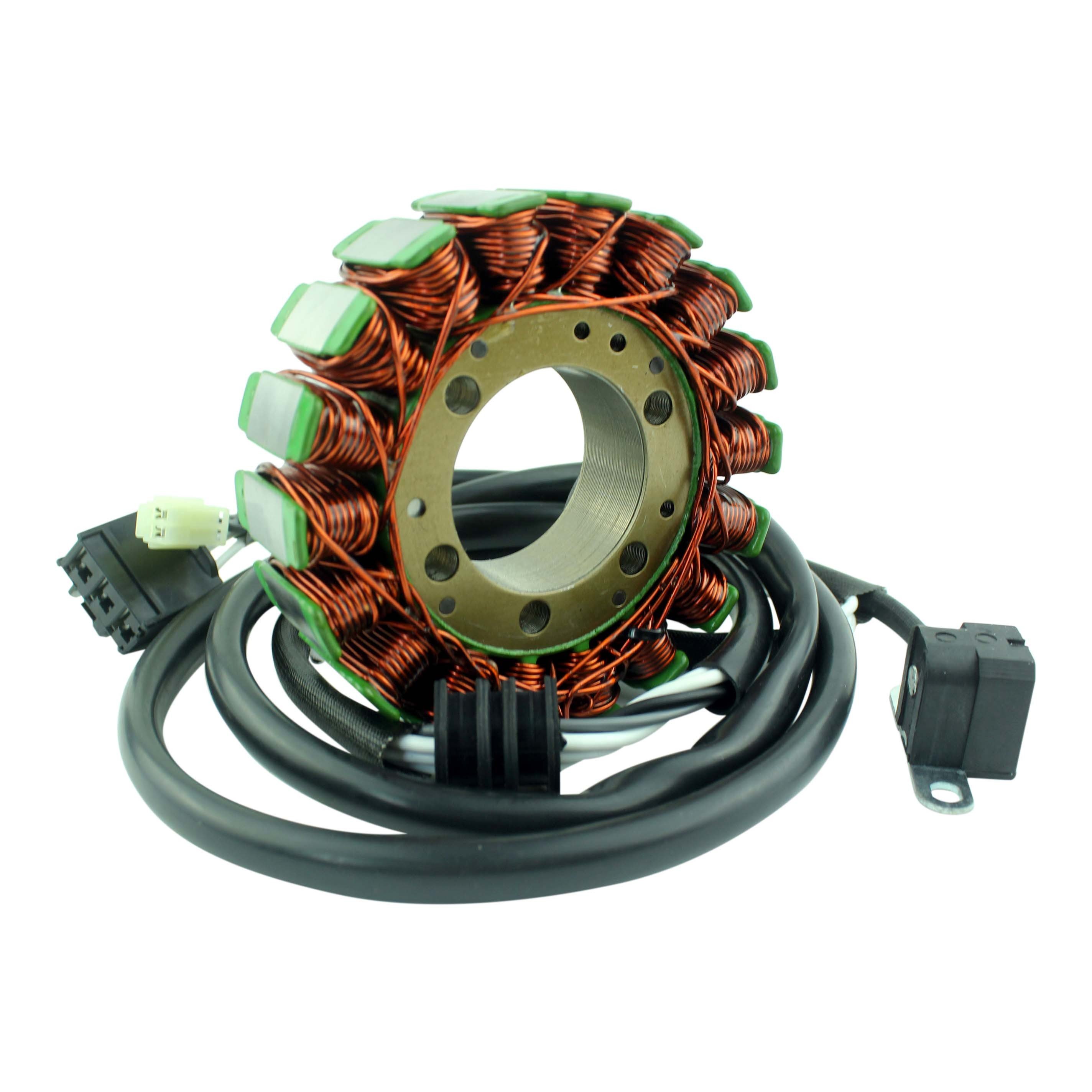

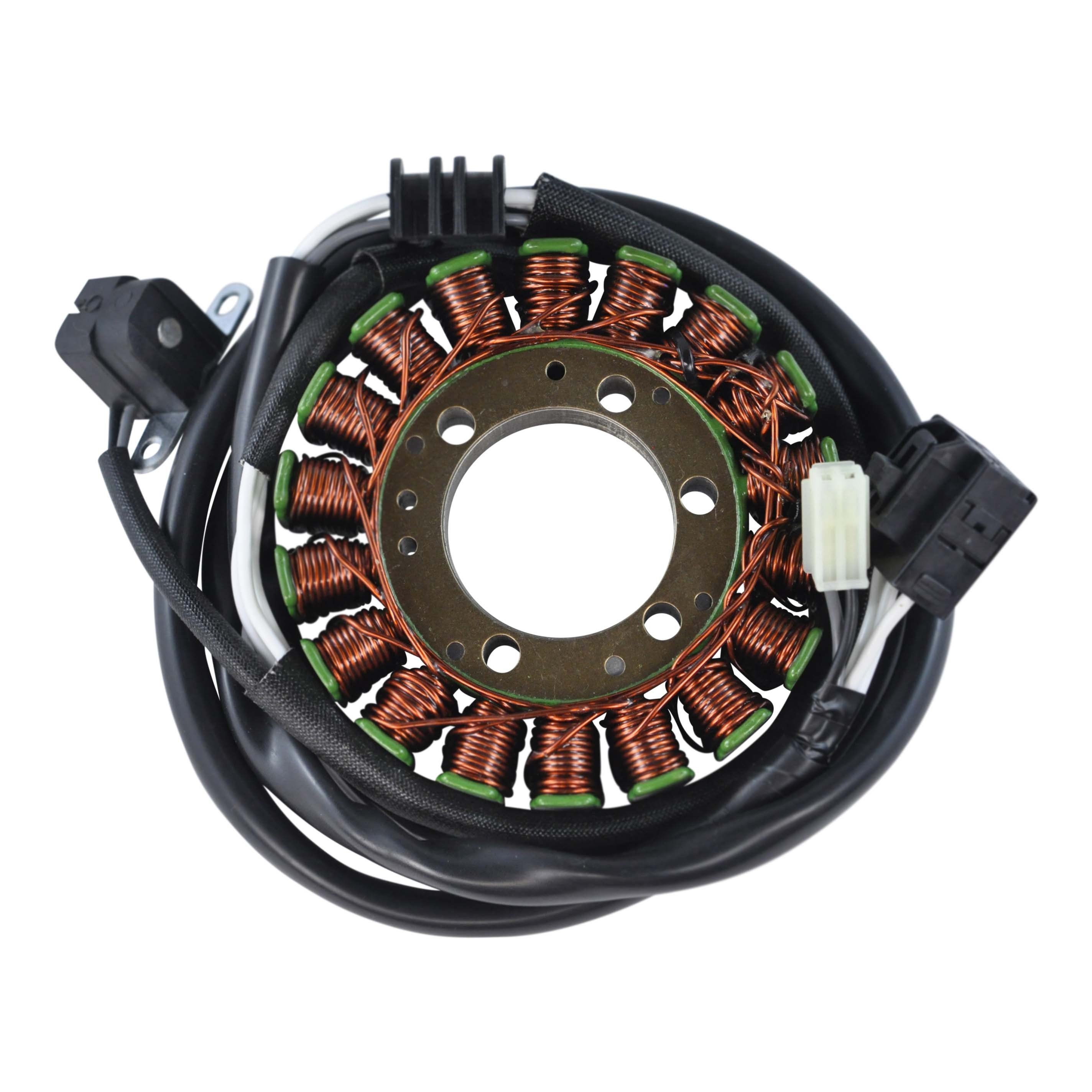

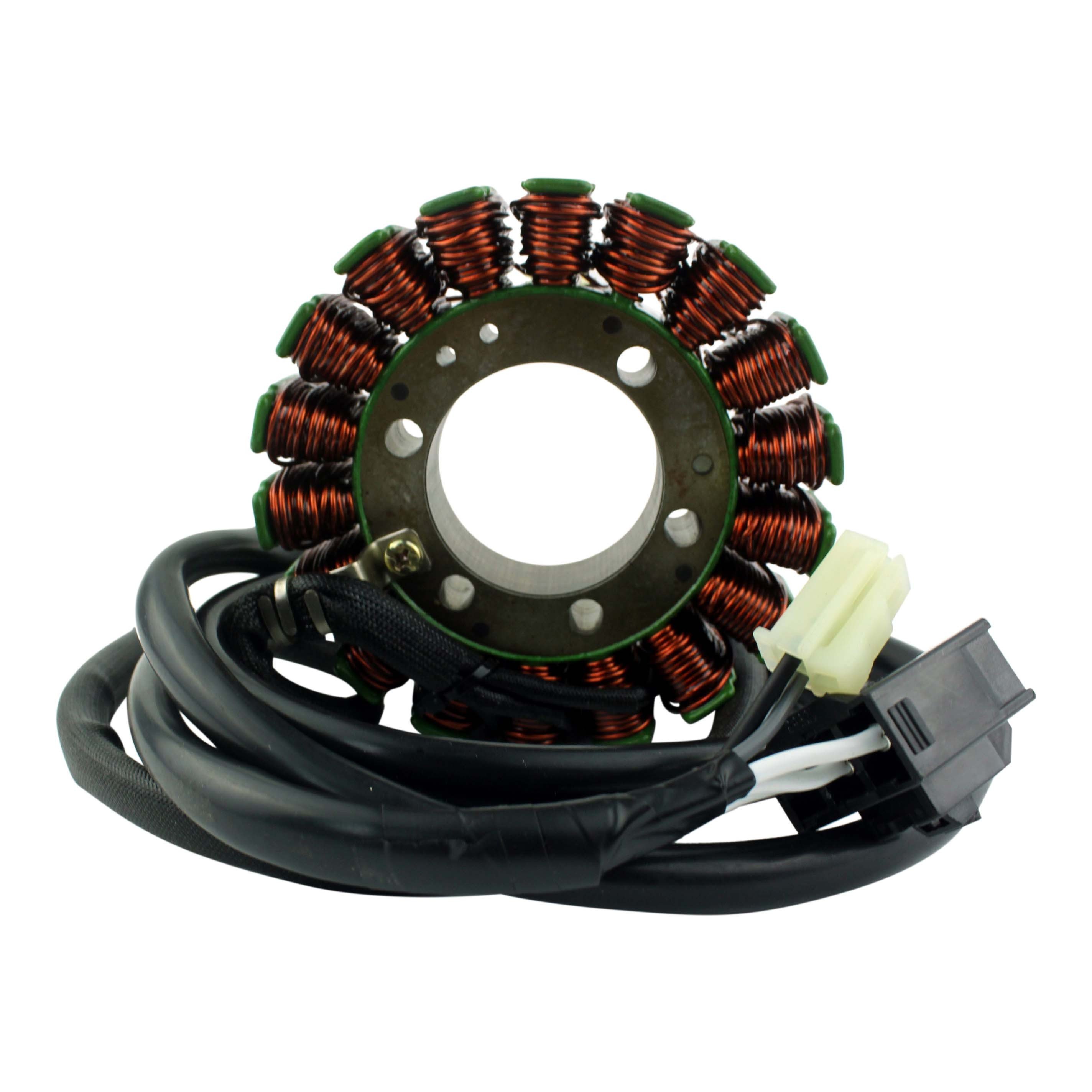

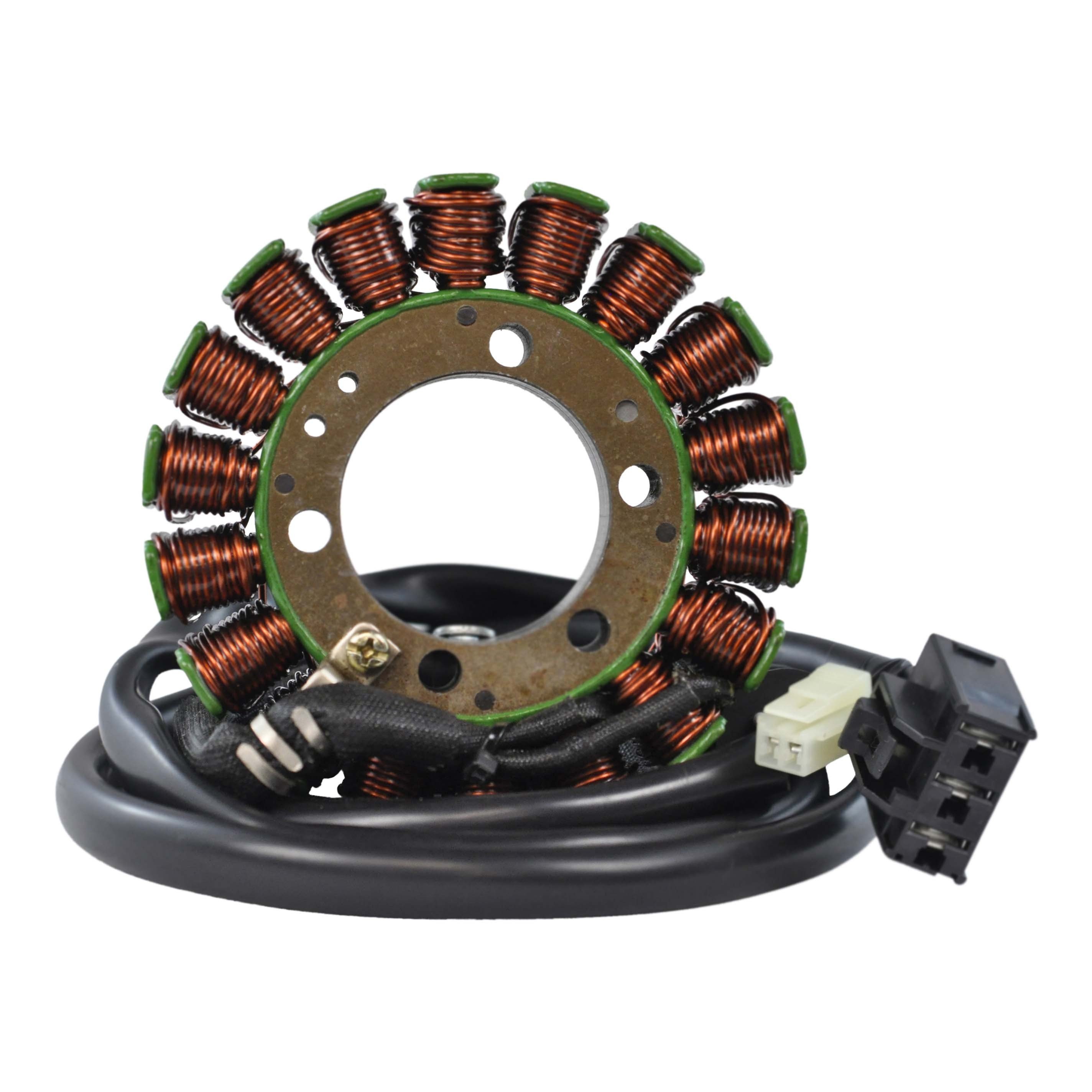

Yamaha Tmax 500 | Stator Coil is a quality, durable and reliable part that is easy to use.
Why Choose Us?
For more information on our policies, terms, and new product offerings, visit our website. You can also explore our diagnostic solutions and learn about our office hours and contact details.
Company Details:
Choose Moto-Electrical as your trusted supplier for top-quality electrical parts, competitive pricing, expert support, and an extensive range of reliable products meeting all your needs.
Connect with us on social media for the latest updates and promotions: Facebook, Instagram
Dimensions:
Interior diameter: 43mm
Exterior diameter: 105mm
Thickness: 22mm
Length of wires stator to grommet: 360mm
Length of wires grommet to plug: 1060mm
Length of wires pickup coil to grommet: 280mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Wire to wire resistance:
Alternator: = 0.4ohms +/-20%
Pickup: = 563ohms =+/-20%
